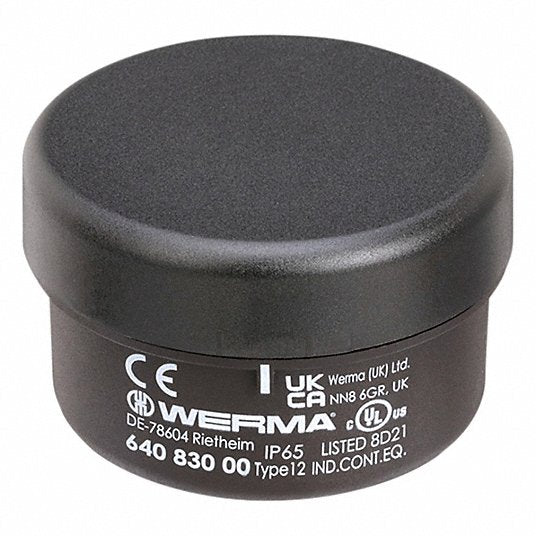

Werma 64083000 Terminal Element Screwable conn.

Product Description

The WERMA 64083000 terminal element is designed for various mounting options using accessories. It features a bayonet lock for easy mounting and dismounting. Suitable for signaling machine conditions, danger situations, or disruptions in industrial applications. Visualization is the first step to get attention.

• Easy to install
• Wide range of light elements and mounting accessories ensures maximum flexibility
• Modular concept allows adding on to the existing configuration

Product Highlights

The terminal element ensures visibility in indoor and outdoor environments. A variety of installation possibilities make this product series perfect for a variety of applications.

Product Information

Standard Information

• Brand: WERMA
• Manufacturer Part Number: 64083000
• Country of Origin: Germany

Technical Specifications

• Article-Nr.: 640.830.00
• Type of fixing: Tube mounting
• Protection category: IP65
• Diameter: 70
• Height: 43
• Materials: PA-GF; PC
• Housing colour: Black
• Connection: Screw terminals
• cross-sectional area minimum: 0,25mm2 / 24AWG
• cross-sectional area maximum: 1,50mm2 / 16AWG
• Cable entry: Through hole
• Cable entry maximum: d = 11 mm
• Working temperature minimum: -20 C
• Working temperature maximum: +50 C
• Operating voltage: 12-230V
• Operating voltage type: AC/DC
• Protection class: Protection class 2
• Overvoltage category: II
• Pollution degree: 3
• Isolation voltage: Ui = 250V / Uimp = 2500V
• Conforms with CE: Yes
• Conforms with RoHS directive: Yes
• WEEE: Yes
• Conforms with ATEX-directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• Conforms with FCC: No
• UL Type Rating: Type 12
• Conforms with ISED: No
• EAC certificate available: No
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• Conforms with RoHS CN: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with VdS: No
• Conforms with T ÜV: No
• UNSPSC Code: 32120000
• Alternate Mfr Part Number: 640.830.00
• Brand: WERMA
• Housing Material: PA-GF; Polycarbonate
• IP Rating: IP65
• Manufacturer Part Number: 64083000
• Mounting Type: Tube mounting
• Series: KombiSIGN 71 Series
• Special Features: The right solution for any type of mounting due to a wide range of accessories
• Temperature Range: -20 to 74 C
• MPN: 640.830.00
• Category: Electrical Equipment & Supplies
• Type of automation module: base
• Manufacturer series: KombiSIGN 71
• Electrical connection: screw terminals
• Operating temperature: -20...50 C
• Application: signalling column
• Color: See Spec or N/A
• Light Tower Options: No Options
• Product Type: Tower Light
• Mount: Mount
• Overall Height: 1-11/16 in
• Overall Diameter: 2-3/4 in
• Overall Width: 2-3/4 in
• Standards: CE; cULus Listed; EAC; RoHS; WEEE
• Connection Type: Screw
• Terminal: Terminal
• Mounting Location: Pole
• Operating Temperature - Maximum: 50 C
• Operating Temperature - Minimum: -20 C
• Compatible with Series: KombiSIGN 71
• UNSPSC: 39112001
