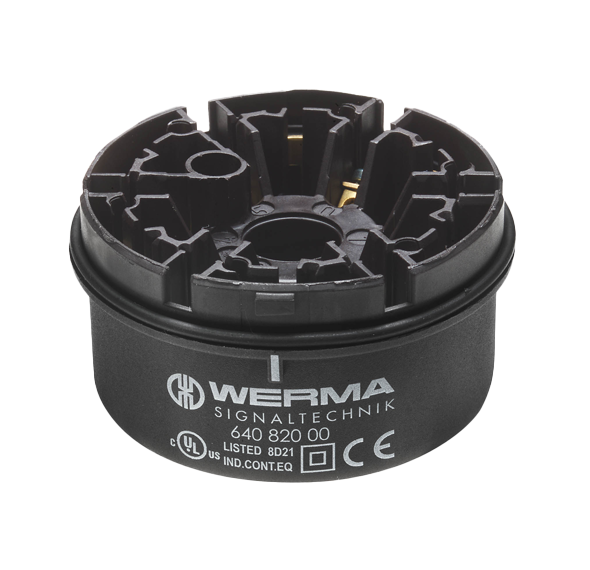

Werma 64082000 Terminal Element Screwable BWM

Product Description

The WERMA 64082000 terminal element is designed for various mounting options using accessories. It features a bayonet lock for easy mounting and dismounting. This stack light can be used to signal machine conditions, danger situations, or disruptions in industrial applications. Visualization is the first step to get attention.

• Easy to install
• Wide range of light elements and mounting accessories ensures maximum flexibility
• Modular concept allows adding on to the existing configuration

Product Highlights

The terminal element offers a reliable signaling solution for industrial environments with easy installation and flexible configuration.

Product Information

Standard Information

• Brand: WERMA
• Manufacturer Part Number: 64082000
• Country of Origin: United States

Technical Specifications

• Type of fixing: Base mounting; Wall mounting
• Protection category: IP65
• Diameter: 70
• Height: 43
• Materials: PA-GF; PC
• Housing colour: Black
• Connection: Screw terminals
• cross-sectional area minimum: 0,25mm 2 / 24AWG
• cross-sectional area maximum: 1,50mm 2 / 16AWG
• Cable entry: Through hole
• Cable entry maximum: d = 11 mm
• Product weight: 89
• Working temperature minimum: -20°C
• Working temperature maximum: +50°C
• Operating voltage: 12-230V
• Operating voltage type: AC/DC
• Protection class: Protection class 2
• Overvoltage category: II
• Pollution degree: 3
• Isolation voltage: Ui = 250V / Uimp = 2500V
• Conforms with CE: Yes
• Conforms with RoHS directive: Yes
• WEEE: Yes
• Conforms with ATEX-directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• Conforms with FCC: No
• UL Type Rating: Type 12
• Conforms with ISED: No
• EAC certificate available: No
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• Conforms with RoHS CN: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with VdS: No
• Conforms with TÜV: No
• UNSPSC Code: 32120000
• Alternate Mfr Part Number: 640.820.00
• Brand: WERMA
• Housing Material: PC (cover)
• IP Rating: IP65
• Manufacturer Part Number: 64082000
• Mounting Type: Base/Bracket Mounting
• Series: KombiSIGN 71 Series
• Special Features: The right solution for any type of mounting due to a wide range of accessories
• Temperature Range: -20 to 74 C
• Unit of Measure: EA
• UPC Code: 4049787004944
• Alternate Part Number: 640.820.00 , 64082000
• Light Tower Options: No Options
• Warranty: 3 Years
• Weight: .5
• Category: Business & Industrial
