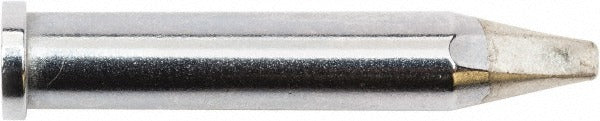

Weller T0054470499 Soldering Iron Chisel Tip Xt

Product Description

The WELLER T0054470499 is a chisel-style soldering iron tip engineered for the XT Series platform. It features a 0.094 inch point width and measures 1.417 inches in length, making it well-suited for precise, controlled heat transfer on small joints and component leads. The tip diameter is 2.40 millimeters. Designed for hand soldering applications, this replacement tip installs into compatible Weller WX1 or WX2 base units paired with the WXP120 soldering iron. It is the type of consumable part that electronics technicians, HVAC controls specialists, and electrical tradespeople keep on hand for bench work and field rework tasks.

This tip is intended for bench-top and field hand soldering using the Weller WX1 or WX2 base unit in combination with the WXP120 iron. The chisel profile provides a flat contact surface that transfers heat efficiently to pad and lead interfaces on PCBs, terminal strips, and wire connections. It is a direct replacement consumable for XT Series tip inventory on Weller WX-platform stations in shop or service environments.

Key Features

• Chisel tip profile for efficient heat transfer to flat solder joints and component leads
• Point width of 0.094 inches for controlled, precise contact
• Tip length of 1.417 inches with a 2.40 millimeter diameter
• Part of the XT Series platform for use with WX1 and WX2 base units and WXP120 iron
• Single-piece packaging with a minimum order quantity of one

Compatibility

Designed for use with the Weller WX1 or WX2 base unit paired with the WXP120 soldering iron as part of the XT Series tip family.

Installation Notes

Tip replacement should be performed by a qualified technician or experienced user with the soldering station powered down and the iron fully cooled before handling. Allow adequate cool-down time before removing a used tip, as residual heat can cause burns. Follow the soldering station manufacturer guidelines for tip insertion and seating to ensure proper thermal contact. Keep the tip tinned when not in active use to extend service life.
