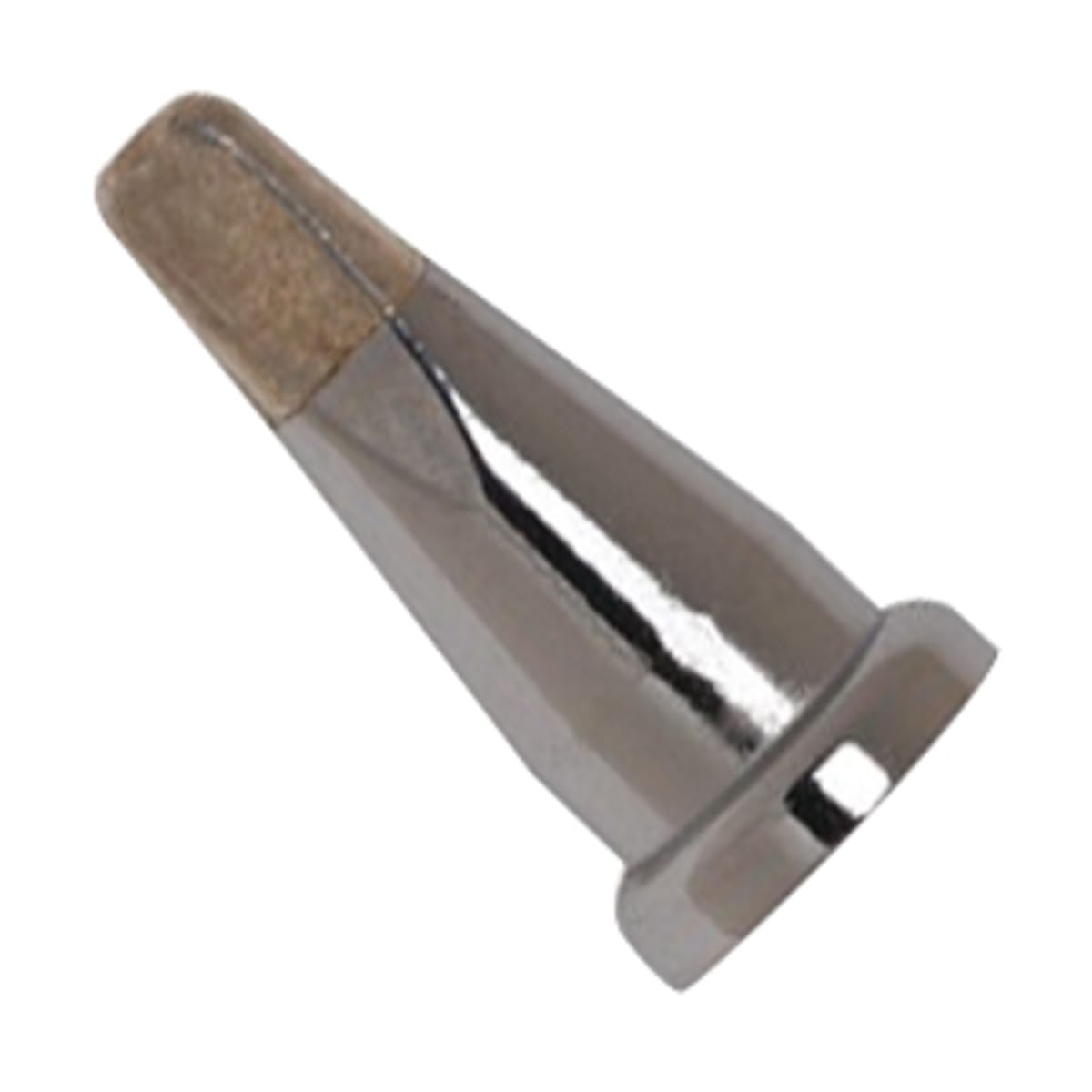

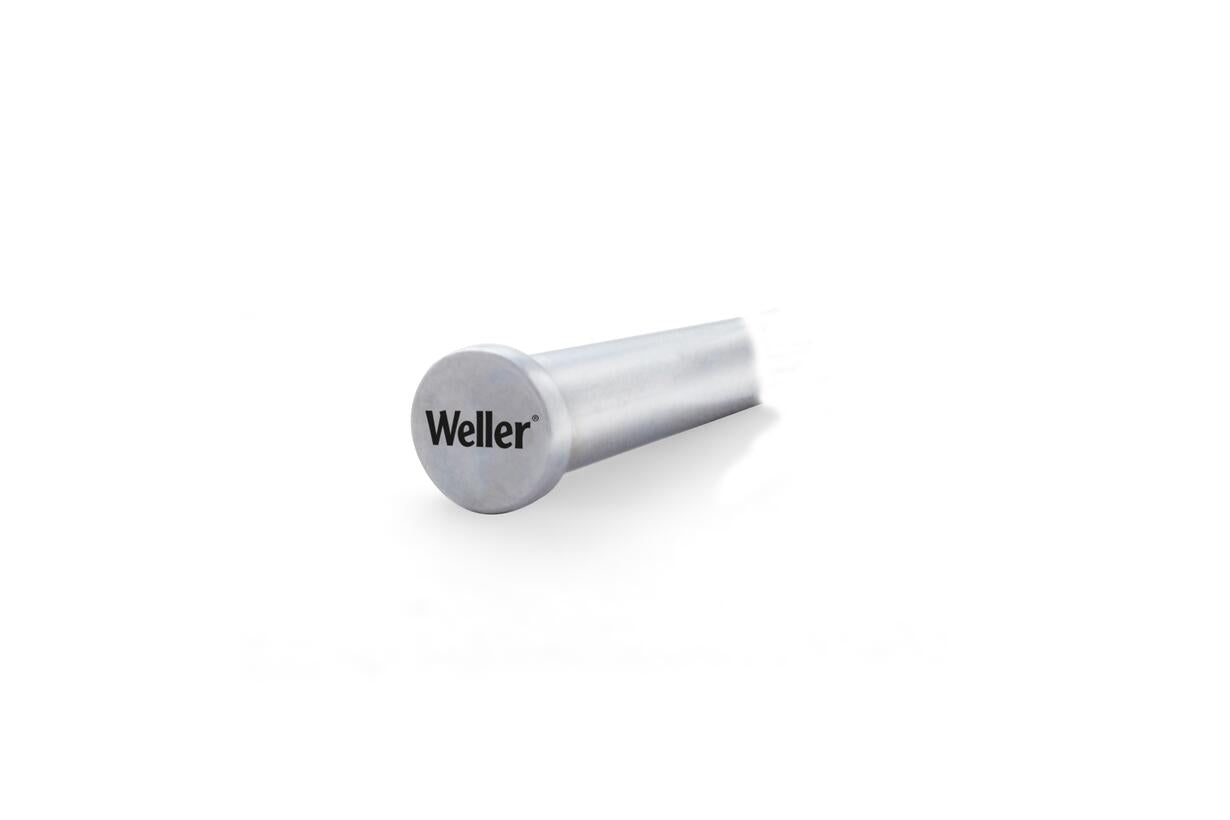

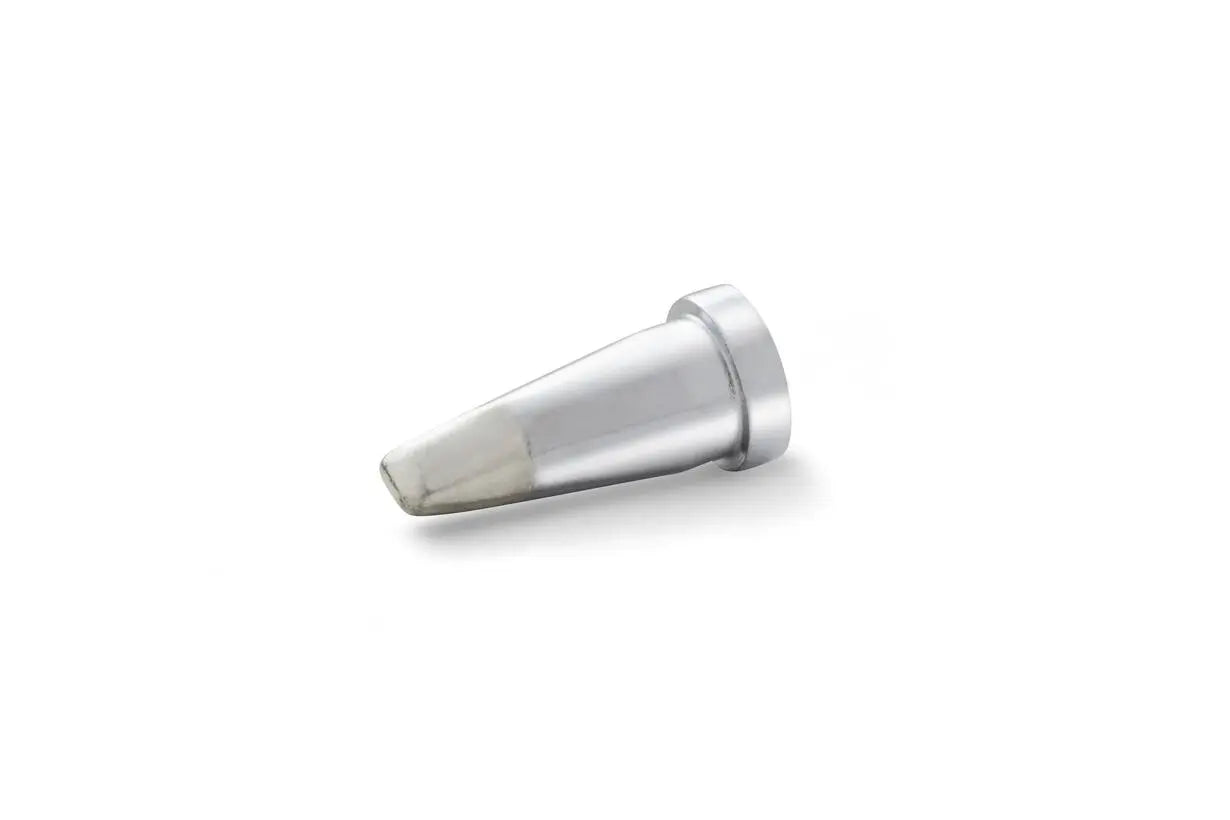

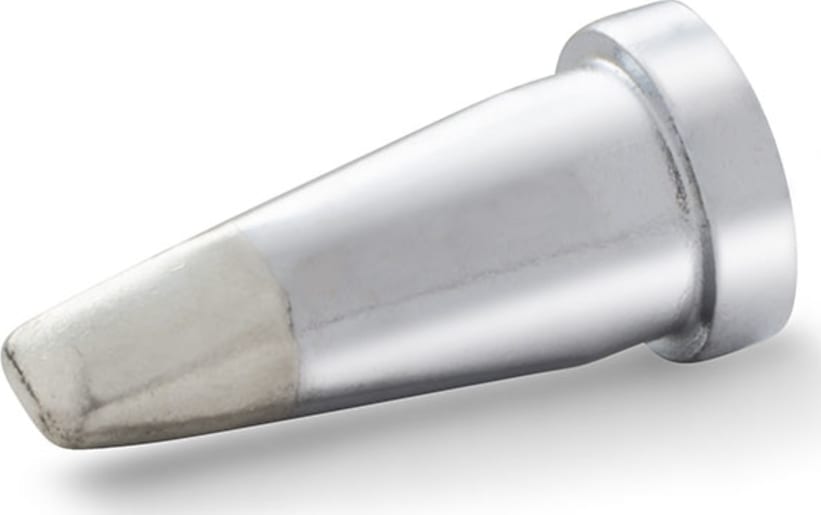

Weller T0054440599 Chisel Soldering Tip (0.8 x 2.4 mm) T0054440599

Brand: WELLER
SKU: T0054440599
Availability: Out Of Stock
$17.53
$17.53
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Weller T0054440599 is an LT-series chisel soldering tip made from a solid copper core with iron plating, sized 0.8 mm thick by 2.4 mm wide and approximately 12.5 mm long. The low-mass construction provides efficient heat transfer and controlled tip temperature for universal soldering tasks. It is intended for pencil-style Weller irons and common SMT and through-hole soldering applications.

  • Solid copper core with iron plating for improved heat transfer and extended tip life
  • Tip dimensions: 0.8 mm thickness x 2.4 mm width; nominal length 12.5 mm
  • Compatible with Weller pencil-style irons including WP80 and WSP80; suitable for SMT and THT work

Product Highlights

LT-series chisel tip, 0.8 x 2.4 mm, iron-plated solid copper construction, compatible with WP80/WSP80 pencil irons

Product Information

Standard Information

  • Brand: WELLER
  • Manufacturer Part Number: T0054440599
  • Country of Origin: China
Technical Specifications
Brand
Weller
Manufacturer Part Number
T0054440599
Model
LTB
Series
LT
Product Type
Soldering Tip
Tip Type
Chisel
Tip Width
2.4 mm (0.0945 in)
Tip Thickness
0.8 mm (0.0315 in)
Tip Length
12.5 mm (0.4921 in)
Tip Outside Diameter
4.6 mm (0.1811 in)
Tip Material
Solid copper (iron-plated)
Tip Finish / Plating
Iron plated
Compatibility
WP80, WSP80 (pencil-style Weller irons)
Also Compatible With
WXP80, WSP80N and compatible Weller stations (per manufacturer references)
Maximum Operating Temperature
850 F
RoHS Compliant
Yes
Pack Quantity
1
Country of Origin
Bosnia and Herzegovina
