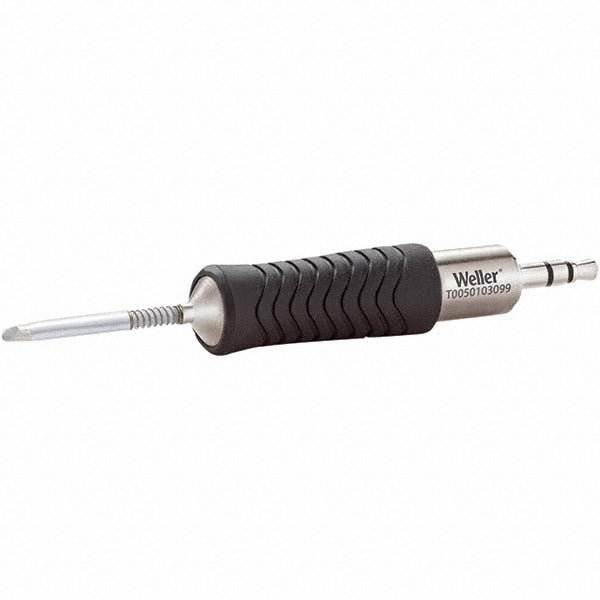

Weller T0050103099 Soldering Iron Gull Wing Tip

Product Description

The WELLER T0050103099 is a gull wing soldering iron tip designed for precision soldering work on fine-pitch and surface-mount components. The gull wing tip geometry allows contact with multiple closely spaced leads in a single pass, making it well-suited for drag soldering operations on SMD packages. At 0.20 millimeters tip diameter, this tip delivers targeted heat transfer to small solder joints without bridging adjacent pads. It is installed and used by electronics technicians, bench technicians, and field service professionals who work with Weller soldering stations.

This tip is intended for use with the Weller T0052922899 soldering iron. Gull wing tips are commonly deployed in electronics assembly, rework, and repair environments where surface-mount technology is prevalent. Typical applications include drag soldering of IC leads, connector pins, and fine-pitch SMD components on populated circuit boards.

Key Features

• Gull wing tip geometry supports drag soldering across multiple leads in one motion
• 0.20 millimeter tip diameter for precise heat delivery on fine-pitch components
• Compatible with Weller T0052922899 soldering iron
• Compact form factor: 4.5 inches height, 0.7 inches width, 0.7 inches length
• Single-piece package quantity for targeted replacement stocking

Compatibility

Designed for use with the Weller T0052922899 soldering iron, as specified by the manufacturer.

Installation Notes

Soldering iron tip replacement is performed by bench or field electronics technicians. Always allow the soldering iron to cool completely and disconnect it from power before removing or installing a tip. Use the appropriate tip removal tool or wrench if required by the iron model to avoid damage to the heating element or tip threads. Follow the iron manufacturer guidelines for tip tinning and maintenance to maximize tip life.
