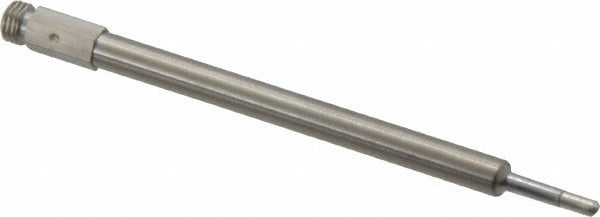

Weller NTGW Soldering Iron Gull Wing Cylindrical Tip

Product Description

The WELLER NTGW is a gull wing cylindrical soldering iron tip engineered for precision soldering work in electronics assembly and rework applications. Part of the NT Series, this tip measures 0.528 inches (13.40 mm) in total tip length with a point size of 0.079 inches, making it well suited for surface-mount component work where contact geometry matters. It is designed to install on the WMP Micro Soldering Pencil and compatible soldering stations. Electronics technicians, PCB assembly professionals, and bench repair techs are the primary users of this tip style.

The gull wing cylindrical profile is a recognized tip geometry for soldering gull wing IC package leads and fine-pitch surface-mount components. This tip is used in production environments, repair benches, and field service kits where the WMP Micro Soldering Pencil platform is the standard tool. Its compact dimensions suit tight board layouts where clearance between components is limited.

Key Features

• Gull wing cylindrical tip geometry for surface-mount and fine-pitch soldering
• Tip length of 0.528 inches (13.40 mm) for close-clearance work
• Point size of 0.079 inches for precise lead contact
• NT Series designation for compatibility with WMP Micro Soldering Pencil platform
• Single-piece packaging suitable for individual replacement or bench stock

Compatibility

Designed for use with the WMP Micro Soldering Pencil and compatible WELLER soldering stations that accept NT Series tips.

Installation Notes

Tip replacement should be performed by an electronics technician with the soldering iron powered off and fully cooled before handling. Allow the unit to reach ambient temperature before removing or seating a new tip to avoid thermal shock or injury. Follow the iron manufacturer guidelines for tip seating depth and retention to ensure proper thermal transfer and mechanical fit.
