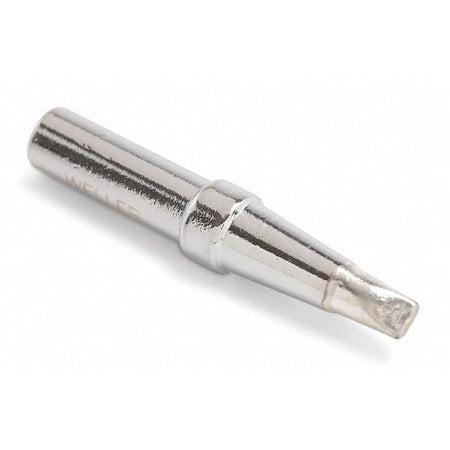

Weller ETC Solder Tip, Screwdriver, 3.2mm

Product Description

The Weller ETC Solder Tip is a screwdriver type soldering tip with a width of three point two millimeters. This soldering tip is compatible with various Weller handpieces including models EC1201A, EC1204A, PES50, and PES51. It is designed for precision soldering tasks and can withstand maximum operating temperatures of eight hundred fifty degrees Fahrenheit.

• Type: Screwdriver
• Compatible with multiple Weller handpieces
• Tip Length: 34.5 mm

Product Highlights

This soldering tip is ideal for detailed work in electronics and offers reliability through its plated copper material.

Product Information

Standard Information

• Material: Plated Copper
• Application: Soldering

Technical Specifications

• Tip Width: 3.2 mm
• Tip Length: 34.5 mm
• Tip Thickness: 0.8 mm
• Tip Outside Diameter: 6.8 mm
• Maximum Operating Temperature: 850 Degrees F
• Compatible Stations: WD1, WD2, WE1010, WE1010EDU, WE1010NA, WES50, WES51, WES51PU, WESD51PU
• Compatible Handpiece Manufacturer: Weller
• Compatible Handpiece Model Numbers: EC1201A, EC1204A, PES50, PES51, WCC101, WEP 70
