Product Description

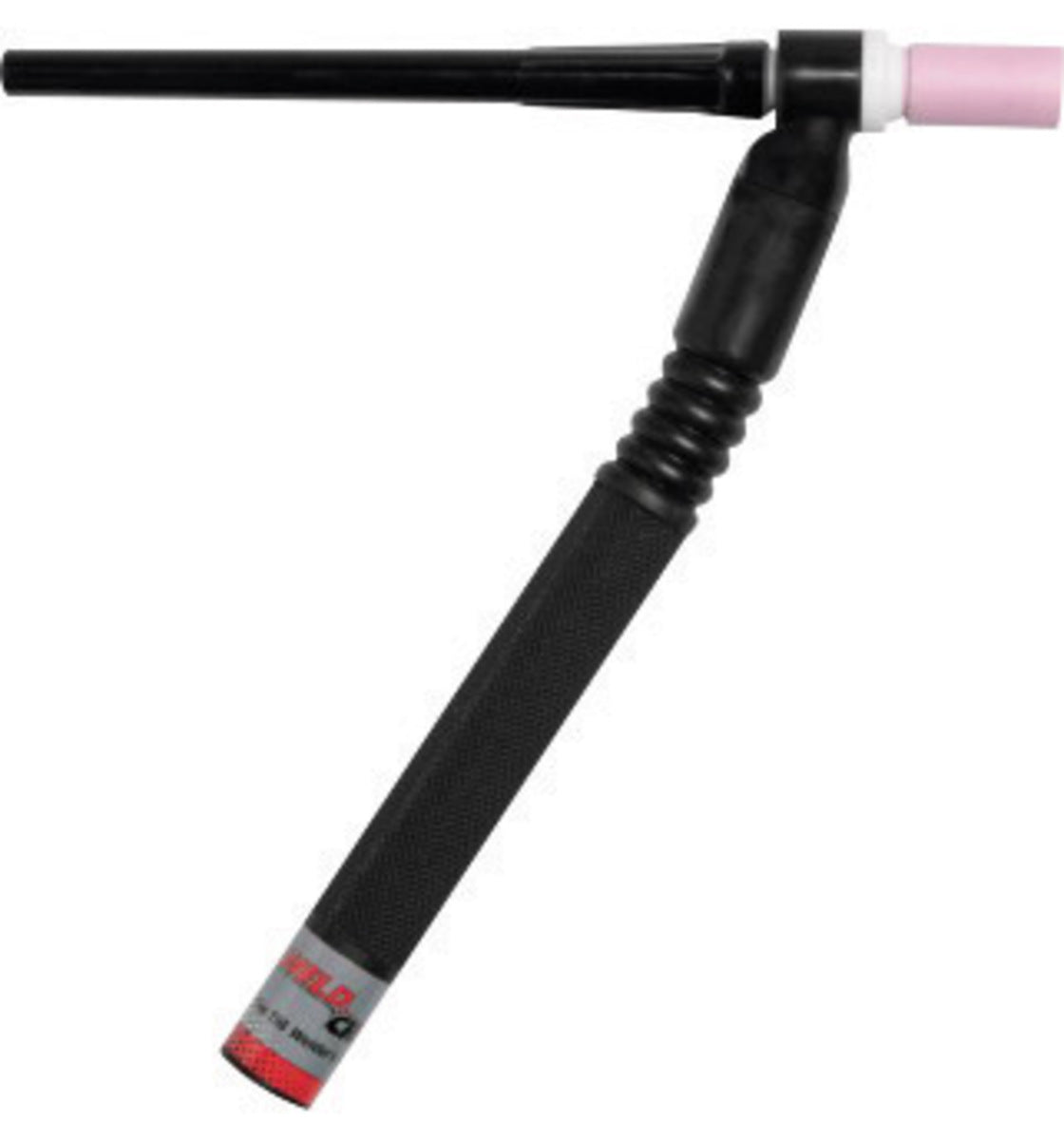

The WELDCRAFT WP-225-25-R is a 225 amp water-cooled TIG torch with 25 foot leads that allows customization of a single torch into multiple configurations for welding various applications and angles. Its built-in, efficient cooling system reduces overheating to extend parts and consumable life. Ideal for stationary welding setups and high-amperage welding applications.
- 30 second head change-over time
- No tools required
- Promotes increased productivity
Product Highlights
Modular design minimizes costs and downtime. Interchangeable torch components configure into two torch styles with supplied heads or up to seven torch styles with optional heads for multiple welding angles.
Product Information
Standard Information
-
Brand: WELDCRAFT
-
Manufacturer Part Number: WP-225-25-R
-
Country of Origin: US
Technical Specifications
-
Amps [Max]: 225A AC/DC
-
Cable Length [Nom]: 25 ft
-
Cooling Method: Water-Cooled
-

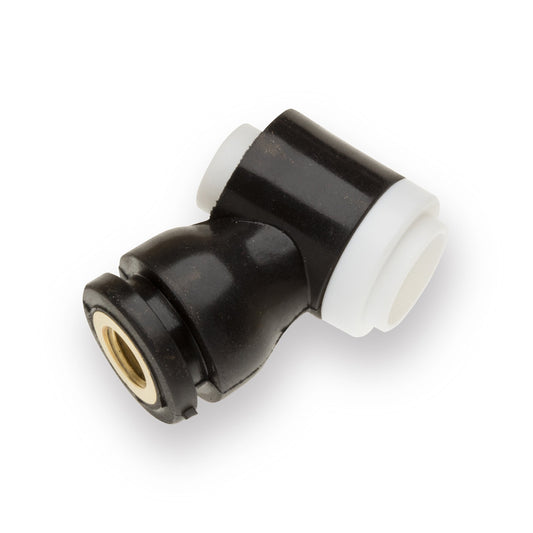

Head Type: Flexible
-

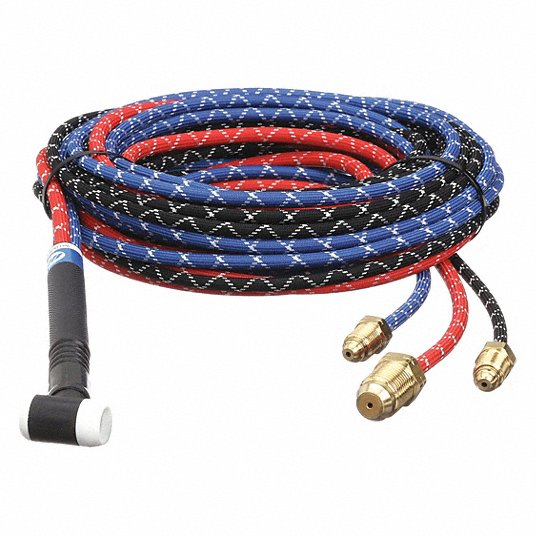

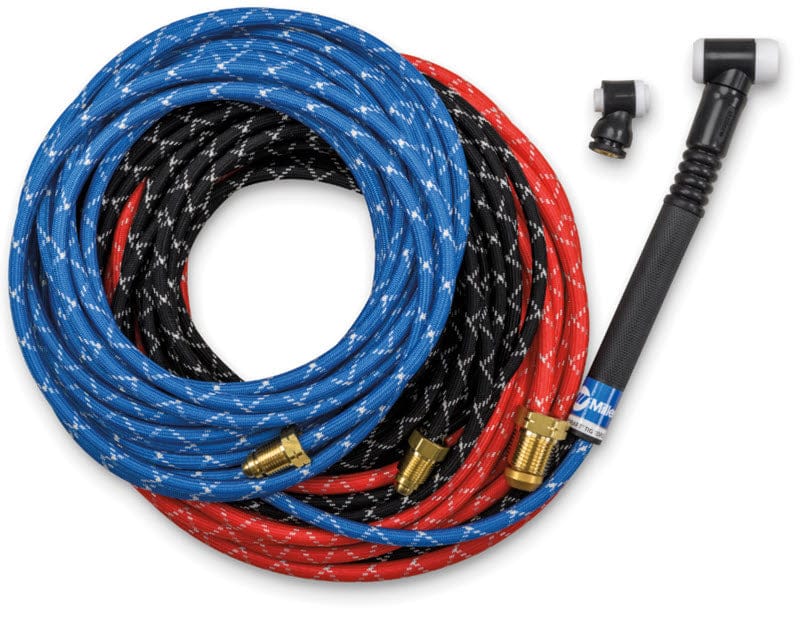

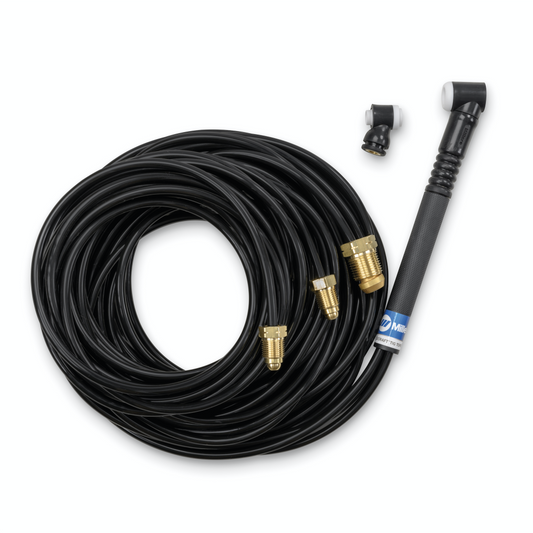

Includes: Torch Body; (2) Flex Heads; Rubber Power Cable; Water Hose; Gas Hose
-
Process: TIG - GTAW
-
Type: Torch Package
-
Torch Length: 25 ft.
-
Product Type: TIG Torch Package
-
TIG Amperage: 225 A
-
Torch Model: Weldcraft W-225 Modular
-
Rigid: Rigid
-
Tungsten Diameter: .020" - 5/32"
-
Brand: MILLER ELECTRIC
-
Maximum Amperage: 225 A
-
TIG Torch Series: W-225
-
Modular: Modular
-
Neck Type: Flexible
-
Power Cord Length: 25 ft
-
Power Cable Material: Braided Rubber
-
Power Cable Construction: 3-Piece
-
TIG Torch Model: WP-225
-
For Max. Electrode Dia.: 5/32 in
-
Gas Valve: No
-
Duty Cycle: 100 %
-
Head Angle: 70°
-
TIG Welding (GTAW): Process
-
For Minimum Electrode Diameter: 0.02 in
-
For Welder Series: W-225
-
Series: Series
-
UNSPSC: 23171517
-
Amperage: 160 A AC, 225 A DC
-
Power Cable Length: 25 ft
-
MFG: WP-225-25-R
