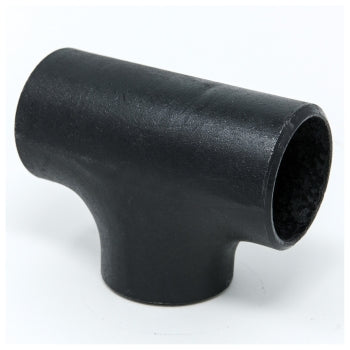

WELDBEND CORP 234-051-020-000 2 XHVY BUTT WELD TEE

Product Description

The WELDBEND CORP 234-051-020-000 is a 2 in nominal size butt weld tee designed for heavy-duty applications. It features a butt welded end style and is made from carbon steel. This fitting can handle a pressure rating of 3422 lb and operates within a temperature range of negative twenty to six hundred fifty degrees Fahrenheit. The internal diameter measures one point nine three nine inches and the outer diameter is two point three eight inches.

• Butt welded design for strong connections
• Suitable for high-pressure applications
• Temperature rating allows use in diverse environments

Product Highlights

This tee is ideal for plumbing and industrial applications requiring reliable fittings.

Product Information

Standard Information

• Manufacturer: WELDBEND CORP

Technical Specifications

• Dimensions: 1.939 in ID x 2.38 in OD
• End Style: Butt Welded
• Fitting/Connector Type: Tee
• Material: Carbon Steel
• Nominal Size: 2 in
• Pressure Rating: 3422 lb
• Schedule Rating: SCH 80/XH
• Temperature Rating: -20 to 650 deg F
• Thickness: 0.218 in
