WELDBEND CORP 105-640-020-000 2 Class 600 THREADED RF

Brand: WELDBEND
SKU: 105-640-020-000
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

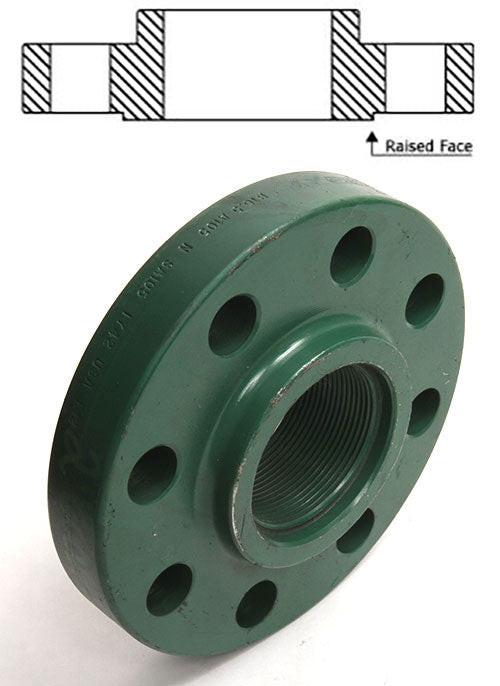

The WELDBEND CORP 105-640-020-000 is a two-inch nominal flange designed for threaded connections. It features a raised face and meets the Class 600 pressure standards. This flange is suitable for various piping applications where reliable connectivity and pressure integrity are required.

  • Two-inch nominal size with up to 1480 psig pressure rating
  • Manufactured from forged carbon steel for durability
  • Includes eight bolt holes for secure installation

Product Highlights

This flange is ideal for industrial piping systems, ensuring strong and leak-free connections.

Product Information

Standard Information

  • Manufacturer: WELDBEND CORP
  • MPN: 105-640-020-000
Technical Specifications
Thickness
1 in
Nominal Size
2 in
Inside Diameter
2-1/2 in
Outside Diameter
6-1/2 in
Hub Diameter
3.31 in
Length Through Hub
1.44 in
Bolt Circle Diameter
5 in
Bolt Hole Size
3/4 in
Number of Bolt Holes
8
Pressure Class
600 lb
Pressure Rating
1480 psig
Connection Type
Thread
Temperature Rating
-20 to 100 deg F
Domestic/Import
Domestic
Applicable Standards
ASME SA105/B16.5, ASTM A105
