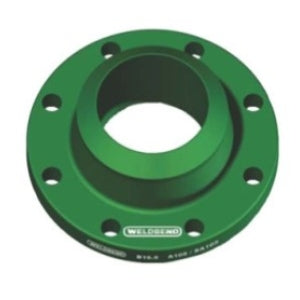

WELDBEND CORP 105-622-020-000 2 600# A105 RFWN XH BORE

Product Description

The Weldbend® Weld Neck Flange, MPN 105-622-020-000, is designed for industrial piping applications. This flange features a raised face and a nominal size of two inches. It includes an inside diameter of one point ninety-four inches and a thickness of one inch. The flange has a standard bore and is suitable for high-pressure systems, rated up to one thousand four hundred eighty psig.

• Forged carbon steel construction
• Compatible with ASME SA105 and ASTM A105 standards
• Temperature rated from negative twenty to one hundred degrees Fahrenheit

Product Highlights

This product is built for durability and reliability in demanding environments.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• Type: Raised Face

Technical Specifications

• Bolt Circle Diameter: 5 inches
• Bolt Hole Size: 3/4 inches
• Bore Size: XS
• Dimensions: 2.38 inches diameter weld
• Domestic/Import: Domestic
• Hub Diameter: 3.31 inches
• Inside Diameter: 1.94 inches
• Length Through Hub: 2.88 inches
• Material: Forged Carbon Steel
• Nominal Size: 2 inches
• Number of Bolt Holes: 8
• Outside Diameter: 6.5 inches
• Pressure Class: 600 lb
• Pressure Rating: 1480 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Thickness: 1 inch
