WELDBEND 105-340-011-000 PIPE FITTINGS
WELDBEND 105-340-011-000 PIPE FITTINGS

WELDBEND CORP 105-340-011-000 1-1/4 Class 300 THREADED RF

Brand: WELDBEND
SKU: 105-340-011-000
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

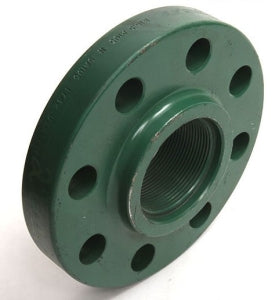

The WELDBEND CORP 105-340-011-000 is a 1-1/4 inch nominal flange designed for pressure applications. It features a raised face and is suitable for threaded connections. This flange is made from carbon steel and is part of the 300 lb pressure class. The flange can withstand a pressure rating of up to 740 psig, making it appropriate for various industrial settings.

  • Nominal Size: 1-1/4 inches
  • Material: Carbon Steel
  • Pressure Rating: 740 psig

Product Highlights

This flange excels in providing reliable connections in piping systems.

Product Information

Standard Information

  • Manufacturer: WELDBEND CORP
  • Type: Raised Face
Technical Specifications
Bolt Circle Diameter
3.88 inches
Bolt Hole Size
3 inches
Connection Type
Thread
Domestic/Import
Domestic
Hub Diameter
2-1/2 inches
Inside Diameter
1-3/4 inches
Length Through Hub
1 inch
Outside Diameter
5-1/4 inches
Pressure Class
300 lb
Temperature Rating
-20 to 100 deg F
Thickness
0.69 inch
Number of Bolt Holes
4
