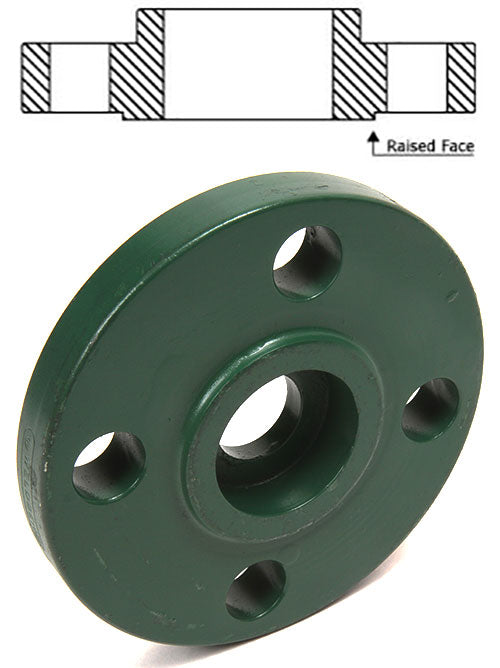

WELDBEND CORP 105-162-011-000 1-1/4 Class 150 SOCKET WELD XSB RF

Product Description

The WELDBEND CORP 105-162-011-000 is a socket weld flange designed for reliable sealing in piping systems. This fitting features a nominal size of one and one-fourth inches and is suitable for Class 150 applications.

• Constructed from forged carbon steel for strength
• Rated for a pressure of 285 psig
• Compatible with ASME SA105 and ASTM A105 standards

Product Highlights

This socket weld flange is built to fit various industrial piping installations, providing robust and leak-free connections.

Product Information

Standard Information

• Manufacturer: WELDBEND CORP
• Type: Raised Face

Technical Specifications

• Nominal Size: 1-1/4 in
• Inside Diameter: 1.7 in
• Outside Diameter: 4.62 in
• Thickness: 0.56 in
• Hub Diameter: 2.31 in
• Length Through Hub: 3/4 in
• Bolt Circle Diameter: 3-1/2 in
• Bolt Hole Size: 5/8 in
• Number of Bolt Holes: 4
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Domestic/Import: Domestic
• Bore Size: XSB
