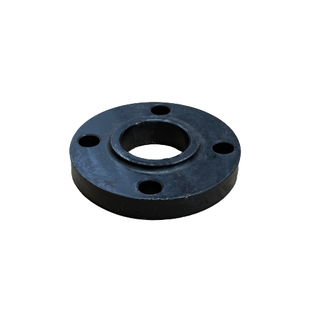

WELDBEND CORP 105-161-030-000 3 Class 150 SOCKET WELD Std FF

Product Description

The WELDBEND CORP 105-161-030-000 is a flat face socket weld flange with a nominal size of three inches. This flange features a high internal diameter of three point fifty-seven inches and has a thickness of zero point eighty-eight inches. It is designed with a six-inch bolt circle and includes four bolt holes for secure connection. The product is manufactured from forged carbon steel and is suitable for use within a temperature range of negative twenty to one hundred degrees Fahrenheit.

• Nominal size: 3 inches
• Pressure rating: 285 psig
• Material: Forged carbon steel

Product Highlights

This flange is ideal for piping and fitting applications in various sectors, adhering to ASME SA105 and ASTM A105 standards.

Product Information

Standard Information

• Manufacturer: WELDBEND CORP
• Warranty: 1 Year Limited

Technical Specifications

• Bolt Circle Diameter: 6 in
• Bolt Hole Size: 3/4 in
• Bore Size: SCH 40/STD
• Domestic/Import: Domestic
• Hub Diameter: 4-1/4 in
• Inside Diameter: 3.57 in
• Length Through Hub: 1.12 in
• Nominal Size: 3 in
• Number of Bolt Holes: 4
• Outside Diameter: 7-1/2 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Thickness: 0.88 in
• Type: Flat Face
