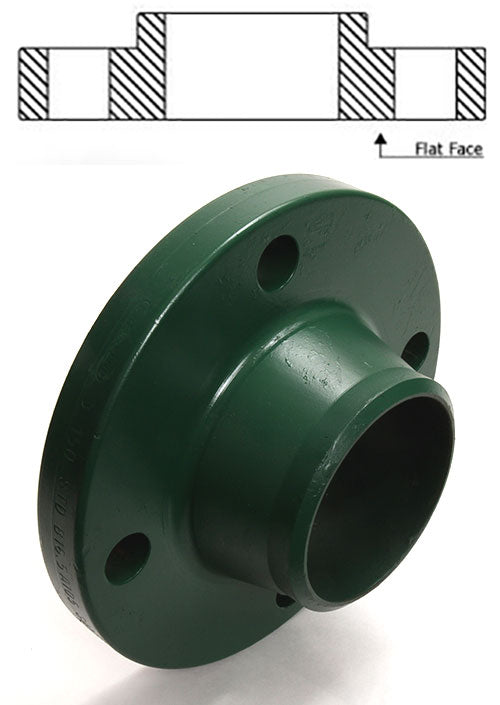

WELDBEND CORP 105-123-022-000 2-1/2 Class 150 Weld Neck XSB FF 105123022000

Product Description

The WELDBEND CORP 105-123-022-000 is a weld neck flange designed for high-pressure applications. It features a nominal size of two and one-half inches and meets Class 150 standards. This product is made from forged carbon steel, ensuring durability and resistance in demanding environments.

• Nominal size of two and one-half inches
• Flat face design for secure connections
• Pressure rating of 285 psig

Product Highlights

This weld neck flange is suitable for various piping systems where robust connections are essential.

Product Information

Standard Information

• Manufacturer: WELDBEND CORP
• Material: Forged Carbon Steel

Technical Specifications

• Nominal Size: 2-1/2 in
• Inside Diameter: 2.47 in
• Outside Diameter: 7 in
• Thickness: 0.81 in
• Bolt Circle Diameter: 5-1/2 in
• Number of Bolt Holes: 4
• Bolt Hole Size: 3/4 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Length Through Hub: 2.69 in
• Hub Diameter: 3.56 in
• Bore Size: XSB
• Dimensions: 2.88 in Dia Weld
• Domestic/Import: Domestic
