WELDBEND CORP 105-123-012-000 1-1/2 Class 150 WELD NECK XSB FF

Product Description

The WELDBEND CORP 105-123-012-000 is a weld neck flange designed for applications requiring durability and reliability. This particular model features a nominal size of one and one-half inches and is classified under Class 150 specifications.

• Manufactured from forged carbon steel
• Operates under a pressure rating of 285 psig
• Temperature range suitable from negative twenty to one hundred degrees Fahrenheit

Product Highlights

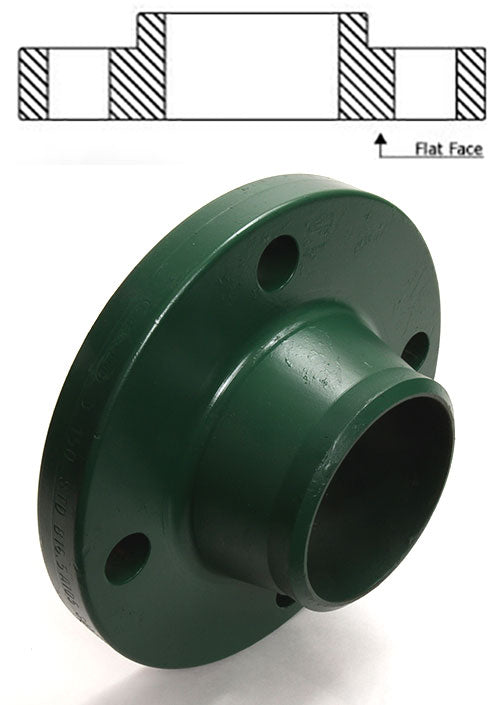

This weld neck flange is engineered with a flat face design, beneficial for accurate alignment and easy installation. It is suitable for domestic applications.

Product Information

Standard Information

• Manufacturer: WELDBEND CORP
• Category: Piping & Fittings

Technical Specifications

• Nominal Size: 1-1/2 in
• Inside Diameter: 1.61 in
• Outside Diameter: 5 in
• Thickness: 0.62 in
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 deg F
• Bolt Circle Diameter: 3.88 in
• Bolt Hole Size: 5/8 in
• Number of Bolt Holes: 4
• Bore Size: XSB
• Hub Diameter: 2.56 in
• Length Through Hub: 2.38 in
• Dimensions: 1.9 in Dia Weld
• Domestic/Import: Domestic
