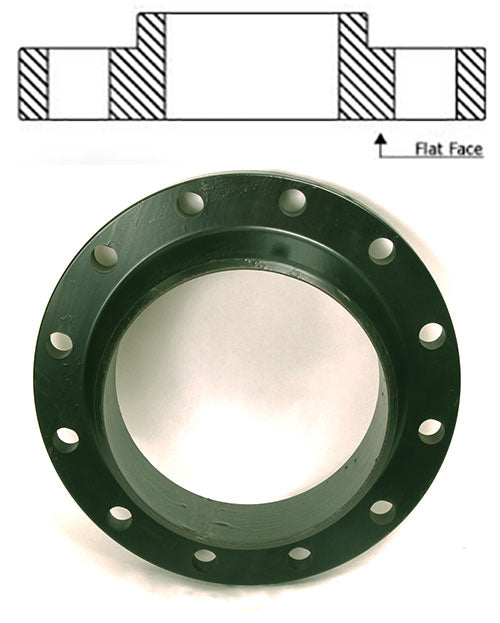

WELDBEND CORP 105-121-120-000 12 Class 150 WELD NECK Std FF

Product Description

The WELDBEND CORP 105-121-120-000 is a 12-inch weld neck flange designed for use in piping systems. It features a flat face and is classified under Class 150. This product is constructed from forged carbon steel, ensuring durability and reliability in various applications.

• Type: Flat Face
• Pressure Rating: 285 psig
• Thickness: 1.19 inches

Product Highlights

This flange is ideal for high-pressure environments and delivers reliable performance in demanding conditions.

Product Information

Standard Information

• Manufacturer: WELDBEND CORP
• UPC:

Technical Specifications

• Nominal Size: 12 inches
• Inside Diameter: 12 inches
• Outside Diameter: 19 inches
• Hub Diameter: 14.38 inches
• Length Through Hub: 4.44 inches
• Bolt Circle Diameter: 17 inches
• Number of Bolt Holes: 12
• Bolt Hole Size: 1 inch
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 degrees F
• Thickness: 1.19 inches
• Domestic/Import: Domestic
