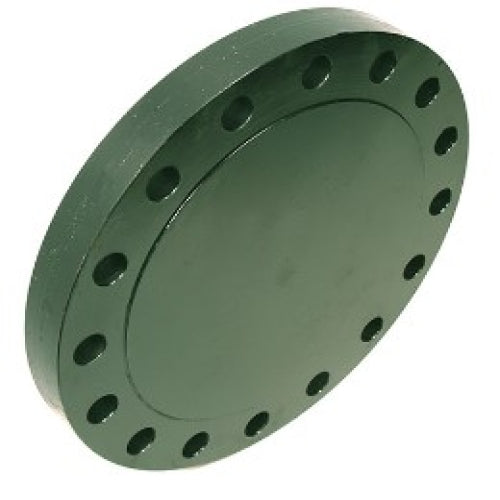

Weldbend 630-120-000 Raised Face Blind Flange 12 in 600 lb

Product Description

The Weldbend Raised Face Blind Flange, MPN 630-120-000, is designed for various piping systems. This product features a nominal size of twelve inches, made of forged carbon steel and rated for six hundred pounds. It has a thickness of two and five-eighths inches and is engineered for high-pressure applications.

• Pressure rating of 1480 psi.
• Operating temperature range from -20 to 1000 degrees Fahrenheit.
• Twenty bolt holes with a bolt circle diameter of nineteen and one-quarter inches.

Product Highlights

Used in piping systems, this flange acts as a seal for pipes, preventing leakage. Ideal for industrial applications, it ensures robust performance.

Product Information

Standard Information

• Brand: Weldbend
• Type: Raised Face

Technical Specifications

• Nominal Size: twelve inches
• Thickness: two and five-eighths inches
• Outside Diameter: twenty-two inches
• Number of Bolt Holes: twenty
• Bolt Hole Size: one and three-eighths inches
• Pressure Rating: 1480 psi
• Pressure Class: 600 lb
• Temperature Rating: -20 to 1000 degrees Fahrenheit
• Domestic/Import: Domestic
