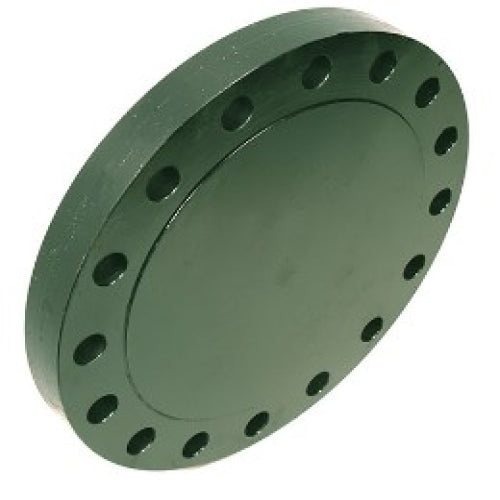

Weldbend 630-080-000 Raised Face Blind Flange 8 in 600 lb

Product Description

The Weldbend 630-080-000 Raised Face Blind Flange is made from forged carbon steel and has a nominal size of eight inches. This flange is designed for use in high-pressure applications, rated at six hundred pounds and can handle pressure up to fourteen eighty psi. It features a raised face design that ensures a reliable seal in piping systems.

• Pressure rating of fourteen eighty psi
• Temperature range of negative twenty to one thousand degrees Fahrenheit
• Made in the USA from domestic materials

Product Highlights

This blind flange is suitable for various piping setups, providing a means to seal off ends in a system or to create a pressure barrier when needed.

Product Information

Standard Information

• Brand: Weldbend
• Manufacturer Part Number: 630-080-000

Technical Specifications

• Nominal Size: 8 in
• Thickness: 2.19 in
• Bolt Circle Diameter: 13-3/4 in
• Bolt Hole Size: 1-1/4 in
• Number of Bolt Holes: 12
• Outside Diameter: 16-1/2 in
• Pressure Class: 600 lb
• Pressure Rating: 1480 psi
• Temperature Rating: -20 to 1000 deg F
• Type: Raised Face
