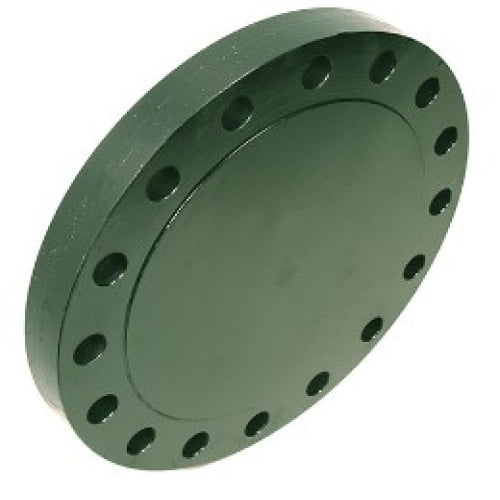

Weldbend 630-040-000 Raised Face Blind Flange 600 lb 4 in

Product Description

The Weldbend 630-040-000 is a raised face blind flange made from forged carbon steel, designed for applications requiring a durable and reliable sealing solution. This flange has a nominal size of four inches and a pressure rating of six hundred pounds. It can withstand various temperature conditions, ranging from minus twenty to one thousand degrees Fahrenheit.

• Bolt circle diameter is eight and one-half inches.
• Features eight bolt holes with a size of one inch.
• Meets ASME SA105 and ASTM A105 standards.

Product Highlights

This blind flange is ideal for use in piping systems that require secure sealing at the end of a pipeline without a connecting pipe. It helps prevent the entry of contaminants and allows for easy maintenance.

Product Information

Standard Information

• Manufacturer: Weldbend
• Material: Forged Carbon Steel

Technical Specifications

• Type: Raised Face
• Nominal Size: 4 in
• Thickness: 1-1/2 in
• Outside Diameter: 10-3/4 in
• Pressure Rating: 1480 psi
• Temperature Rating: -20 to 1000 deg F
• Number of Bolt Holes: 8
• Bolt Hole Size: 1 in
• Bolt Circle Diameter: 8-1/2 in
