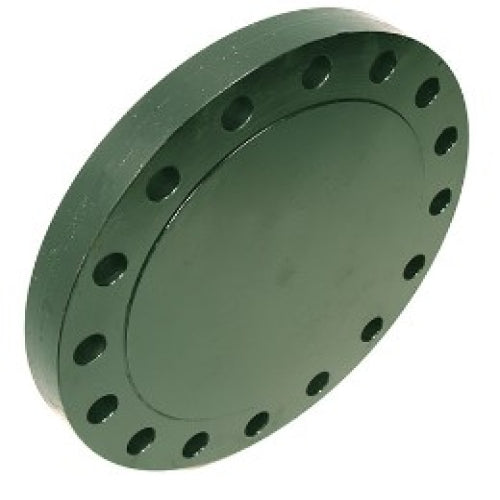

Weldbend 630-030-000 Raised Face Blind Flange, 3 in, Forged Carbon Steel, 600 lb, Domestic

Product Description

The Weldbend Raised Face Blind Flange, MPN 630-030-000, is designed for reliable performance in piping systems. This flange has a nominal size of three inches and is made from forged carbon steel. It is rated for a pressure of six hundred pounds and can handle temperatures from negative twenty to one thousand degrees Fahrenheit.

• Forged carbon steel construction
• Pressure rating of 1480 psi
• Features eight bolt holes for secure installation

Product Highlights

This blind flange is suitable for various applications in piping systems requiring a durable and robust solution.

Product Information

Standard Information

• Brand: Weldbend
• Type: Raised Face

Technical Specifications

• Nominal Size: 3 in
• Thickness: 1-1/4 in
• Bolt Circle Diameter: 6-5/8 in
• Bolt Hole Size: 7/8 in
• Number of Bolt Holes: 8
• Outside Diameter: 8-1/4 in
• Pressure Rating: 1480 psi
• Temperature Rating: -20 to 1000 deg F
• Domestic/Import: Domestic
• Standards/Approvals: ASME SA105/B16.5|ASTM A105
