Weldbend 630-010-000 Raised Face Blind Flange 1 in 600 lb

Product Description

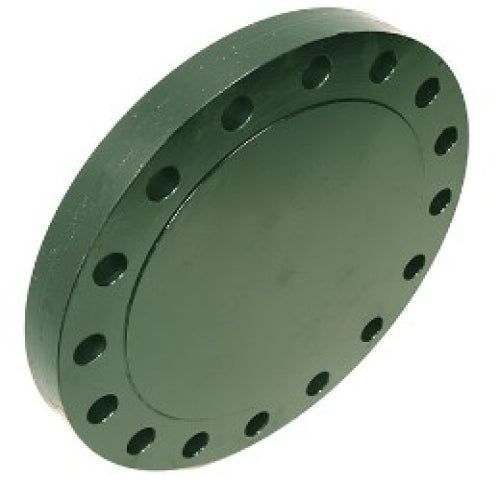

The Weldbend 630-010-000 is a raised face blind flange made of forged carbon steel with a nominal size of one inch. This flange is suitable for a range of applications requiring a reliable seal in piping systems. It has a thickness of zero point six nine inches and features a bolt circle diameter of three and a half inches and four bolt holes.

• Pressure rating of fourteen hundred eighty psi
• Suitable for temperatures ranging from negative twenty to one thousand degrees Fahrenheit
• Meets ASME SA105/B16.5 and ASTM A105 standards

Product Highlights

This blind flange is designed for high-pressure applications, ensuring a secure closure in pipe systems. Its forged carbon steel construction provides durability and reliability.

Product Information

Standard Information

• Brand: Weldbend
• Manufacturer Part Number: 630-010-000

Technical Specifications

• Nominal Size: 1 in
• Thickness: 0.69 in
• Outside Diameter: 4.88 in
• Pressure Rating: 1480 psi
• Temperature Rating: -20 to 1000 deg F
• Bolt Circle Diameter: 3-1/2 in
• Number of Bolt Holes: 4
• Bolt Hole Size: 3/4 in
