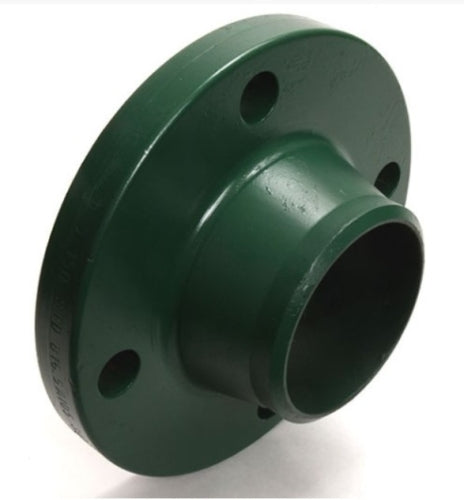

Weldbend 620-060-000 Weld Neck Flange Raised Face 6 in 600 lb

Brand: WELDBEND
SKU: 620-060-000
Availability: Out Of Stock
$309.11
$309.11
LTL Delivery

This product weighs 81 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Weldbend Weld Neck Flange, model 620-060-000, is a reliable component made from forged carbon steel. This flange features a raised face design suitable for a nominal size of six inches. It is built to handle high pressures, rated at 1480 psig, and works effectively within a temperature range from negative twenty to one hundred degrees Fahrenheit.

  • Flange type: Raised Face
  • Pressure class: 600 lb
  • Compatible with SCH 40/STD bore

Product Highlights

This Weldbend Weld Neck Flange is designed for durability and performance in various piping systems.

Product Information

Standard Information

  • Brand: Weldbend
  • Manufacturer: Weldbend
Technical Specifications
Nominal Size
6 in
Inside Diameter
5.76 in
Outside Diameter
14 in
Bolt Circle Diameter
11-1/2 in
Bolt Hole Size
1-1/8 in
Number of Bolt Holes
12
Thickness
1.88 in
Hub Diameter
8-3/4 in
Length Through Hub
4-5/8 in
Pressure Rating
1480 psig
Temperature Rating
-20 to 100 deg F
Material
Forged Carbon Steel
Bore Size
SCH 40/STD
Domestic/Import
Domestic
Dimensions
6.63 in Dia Weld
