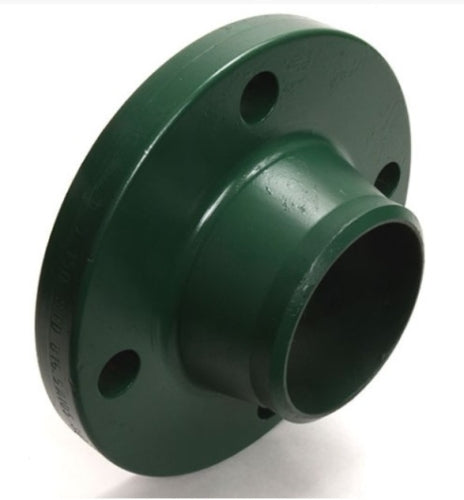

Weldbend 620-030-000 Weld Neck Flange 3 in 600 lb SCH 40/STD

Product Description

The Weldbend 620-030-000 is a raised face weld neck flange. It features a nominal size of three inches and is made from forged carbon steel. This flange has a pressure rating of 1480 psig and accommodates various applications.

• Pressure Class: 600 lb
• Temperature Range: -20 to 100 degrees Fahrenheit
• Bore Size: SCH 40/STD

Product Highlights

The Weldbend 620-030-000 is designed for reliable connections in piping systems. It is suitable for domestic use and is available for standard order quantities.

Product Information

Standard Information

• Brand: Weldbend
• Material: Forged Carbon Steel

Technical Specifications

• Nominal Size: 3 in
• Inside Diameter: 2.9 in
• Outside Diameter: 8-1/4 in
• Thickness: 1-1/4 in
• Hub Diameter: 4.62 in
• Length Through Hub: 3-1/4 in
• Bolt Circle Diameter: 6.62 in
• Number of Bolt Holes: 8
• Bolt Hole Size: 7/8 in
• Pressure Rating: 1480 psig
• Temperature Rating: -20 to 100 degrees F
• Bore Size: SCH 40/STD
• Domestic/Import: Domestic
