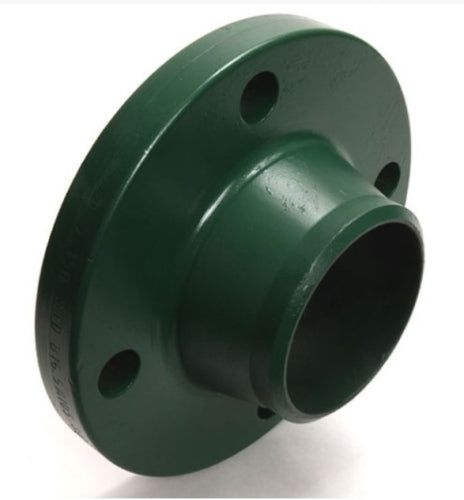

Weldbend 620-022-000 Weld Neck Flange 600 lb 2-1/2 in

Product Description

The Weldbend Weld Neck Flange, model 620-022-000, is designed for use in high-pressure applications. Made from forged carbon steel, this raised face flange features a nominal size of two and a half inches. The inside diameter measures two point three two inches, and the outside diameter is seven and a half inches. It has eight bolt holes with a size of seven eighths inches, allowing for sturdy connections.

• Forged carbon steel material ensures durability.
• Designed for pressures up to 1480 psig.
• Temperature rated from -20 to 100 degrees Fahrenheit.

Product Highlights

This flange supports standard and heavy-duty piping systems. It provides a secure and robust connection in various industrial applications.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 620-022-000

Technical Specifications

• Bolt Circle Diameter: 5.88 in
• Bolt Hole Size: 7/8 in
• Bore Size: SCH 40/STD
• Dimensions: 2.88 in Dia Weld
• Domestic/Import: Domestic
• Hub Diameter: 3.94 in
• Inside Diameter: 2.32 in
• Length Through Hub: 3.12 in
• Material: Forged Carbon Steel
• Nominal Size: 2-1/2 in
• Number of Bolt Holes: 8
• Outside Diameter: 7-1/2 in
• Pressure Class: 600 lb
• Pressure Rating: 1480 psig
• Temperature Rating: -20 to 100 deg F
• Thickness: 1.12 in
• Type: Raised Face
