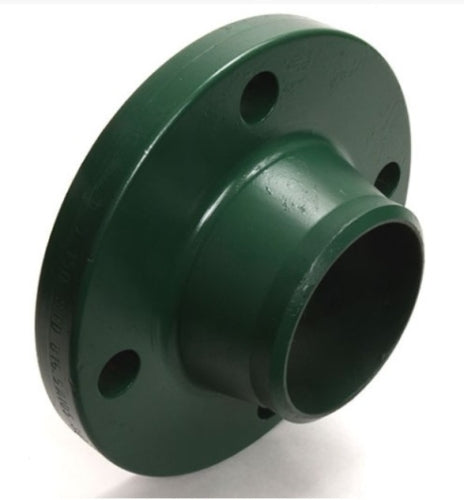

Weldbend 620-020-000 Raised Face Weld Neck Flange 600 lb 2 in

Product Description

The Weldbend Weld Neck Flange, MPN 620-020-000, is designed for strong connections in piping systems. It features a raised face for proper sealing and is made from forged carbon steel.

• Nominal size: 2 inches
• Pressure rating: 600 lb
• Temperature range: -20 to 100 degrees Fahrenheit

Product Highlights

This flange is suitable for various industrial applications requiring reliable pipe connections.

Product Information

Standard Information

• Brand: Weldbend
• Part Number: 620-020-000

Technical Specifications

• Inside Diameter: 1.94 inches
• Thickness: 1 inch
• Bore Size: SCH 40/STD
• Number of Bolt Holes: 8
• Hub Diameter: 3.31 inches
• Length Through Hub: 2.88 inches
• Bolt Circle Diameter: 5 inches
• Outside Diameter: 6.5 inches
• Pressure Rating: 1480 psig
• Material: Forged Carbon Steel
• Domestic/Import: Domestic
• Standards/Approvals: ASME SA105/B16.5, ASTM A105
