Weldbend 360-022-000 Weldbend® 360-022-000 Raised Face Socket Weld Flange 300 lb 2-1/2 in

Product Description

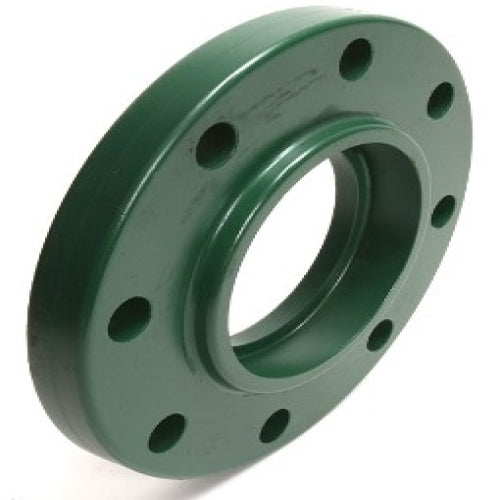

Weldbend® 360-022-000 is a raised face socket weld flange made from forged carbon steel. This flange has a nominal size of two and a half inches with a bore size that complies with SCH 40/STD standards. The inside diameter measures two point nine four inches and it features a thickness of zero point nine four inches. Its bolt circle diameter is five point eight eight inches with eight bolt holes sized seven eighths inch. Designed for high-pressure applications, it has a pressure rating of seven hundred forty psig and a pressure class of three hundred pounds. This flange can operate within a temperature range of negative twenty to one hundred degrees Fahrenheit. It offers a durable construction suited for various domestic piping systems.

• Material: Forged Carbon Steel
• Pressure Rating: 740 psig
• Nominal Size: 2-1/2 in

Product Highlights

This socket weld flange is ideal for connecting pipes, valves, and fittings in high-pressure systems.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 360-022-000

Technical Specifications

• Bolt Circle Diameter: 5.88 in
• Bolt Hole Size: 7/8 in
• Bore Size: SCH 40/STD
• Domestic/Import: Domestic
• Hub Diameter: 3.94 in
• Inside Diameter: 2.94 in
• Length Through Hub: 1.44 in
• Material: Forged Carbon Steel
• Nominal Size: 2-1/2 in
• Number of Bolt Holes: 8
• Outside Diameter: 7-1/2 in
• Pressure Class: 300 lb
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 deg F
• Thickness: 0.94 in
• Type: Raised Face
