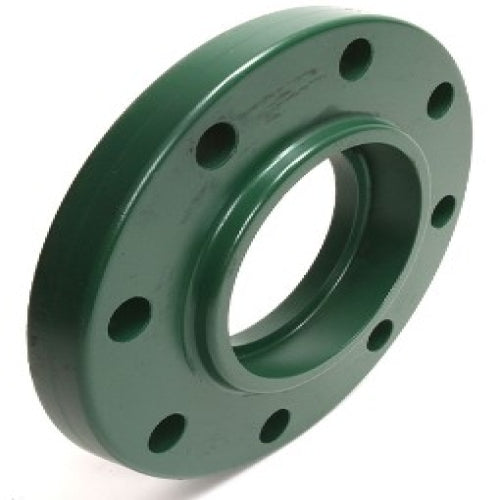

Weldbend 360-020-000 Raised Face Socket Weld Flange 2 in 300 lb

Brand: WELDBEND
SKU: 360-020-000
Availability: In Stock

Ships same day if ordered by 12 pm
$42.67
$42.67
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Weldbend 360-020-000 is a raised face socket weld flange designed for high-pressure applications. Made from forged carbon steel, this flange measures two inches nominal size and has a thickness of zero point eighty-one inches. It supports a pressure rating of seven hundred forty psig and operates effectively in temperatures ranging from negative twenty to one hundred degrees Fahrenheit. Compatible with SCH 40/STD bore specifications, this flange ensures robust connections.

  • Pressure class of three hundred lb
  • Includes eight bolt holes with a five inch bolt circle
  • Domestic production quality

Product Highlights

This flange is ideal for welding and piping systems, providing reliability under demanding conditions.

Product Information

Standard Information

  • Brand: Weldbend
  • MPN: 360-020-000
Technical Specifications
Nominal Size
2 in
Inside Diameter
2.44 in
Outside Diameter
6-1/2 in
Hub Diameter
3.31 in
Length Through Hub
1-1/4 in
Thickness
0.81 in
Bore Size
SCH 40/STD
Number of Bolt Holes
8
Bolt Circle Diameter
5 in
Bolt Hole Size
3/4 in
Pressure Rating
740 psig
Pressure Class
300 lb
Temperature Rating
-20 to 100 deg F
Domestic/Import
Domestic
