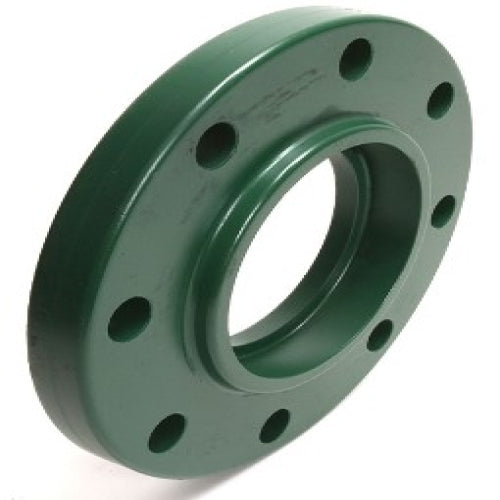

Weldbend 360-010-000 Raised Face Socket Weld Flange 300 lb 1 in

Product Description

The Weldbend 360-010-000 is a raised face socket weld flange made from forged carbon steel. This fitting features a nominal size of one inch, an inner diameter of one point three six inches, and a thickness of zero point six two inches. The flange is designed to connect pipes and valves in high pressure systems, ensuring a secure and leak-proof seal with its standard bore. It is rated for pressures up to seven hundred forty psig and can operate within a temperature range of negative twenty to one hundred degrees Fahrenheit.

• Material: Forged carbon steel
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit

Product Highlights

This raised face flange is suitable for various piping applications, including HVAC and industrial processes. It fits standard pipe sizes and ensures reliable performance under demanding conditions.

Product Information

Standard Information

• Type: Raised Face
• Domestic/Import: Domestic

Technical Specifications

• Nominal Size: 1 in
• Inside Diameter: 1.36 in
• Outside Diameter: 4.88 in
• Hub Diameter: 2.12 in
• Length Through Hub: 1 in
• Thickness: 0.62 in
• Bolt Circle Diameter: 3-1/2 in
• Bolt Hole Size: 3/4 in
• Number of Bolt Holes: 4
• Bore Size: SCH 40/STD
• Pressure Class: 300 lb
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 deg F
