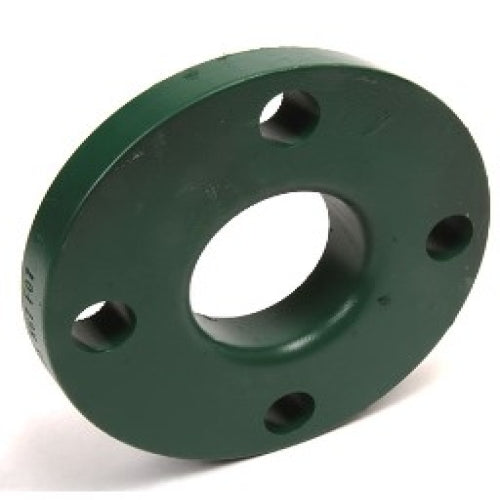

Weldbend 351-020-000 Lap Joint Flange 2 in 300 lb

Product Description

The Weldbend Lap Joint Flange is a high-quality component made from forged carbon steel, identified by the MPN 351-020-000. This flange is designed for use in various piping systems.

• Nominal size of two inches
• Pressure rating of 740 psig
• Temperature range of -20 to 1000 degrees Fahrenheit

Product Highlights

The Weldbend Lap Joint Flange offers durability and reliability in fluid handling applications. It is ideal for both installation and maintenance in HVAC systems, piping networks, and other industrial settings.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 351-020-000

Technical Specifications

• Nominal Size: 2 in
• Thickness: 0.88 in
• Outside Diameter: 6-1/2 in
• Bolt Circle Diameter: 5 in
• Number of Bolt Holes: 8
• Bolt Hole Size: 3/4 in
• Hub Diameter: 3.31 in
• Length Through Hub: 1.31 in
• Material: Forged Carbon Steel
• Pressure Class: 300 lb
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 1000 deg F
• Standards: ASME SA105/B16.5, ASTM A105
