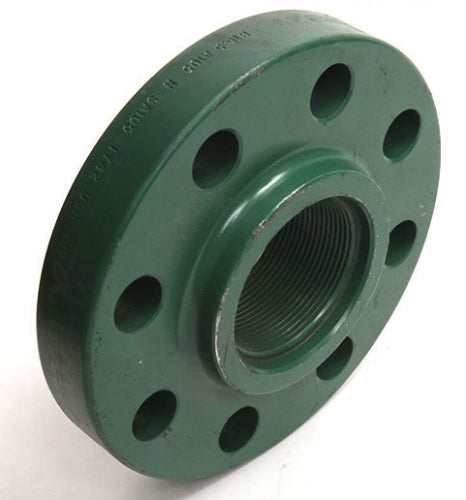

Weldbend 340-050-000 Raised Face Flange 300 lb 5 in Nominal

Brand: WELDBEND
SKU: 340-050-000
Availability: Out Of Stock
$97.59
$97.59
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Weldbend 340-050-000 is a raised face flange designed for threaded connections. It features a nominal size of five inches and is made from carbon steel. The flange is ideal for high-pressure applications with a rating of seven hundred forty psig. It is suitable for various industrial and mechanical uses. This domestic product is engineered to meet rigorous standards.

  • Nominal size of five inches
  • Supports up to seven hundred forty psig pressure
  • Thread connection type ensures a secure fit

Product Highlights

The Weldbend 340-050-000 flange is perfect for piping systems that require durability and strength. It provides reliability in high-pressure environments.

Product Information

Standard Information

  • Brand: Weldbend
  • MPN: 340-050-000
Technical Specifications
Nominal Size
5 inches
Inside Diameter
5.69 inches
Outside Diameter
11 inches
Hub Diameter
7 inches
Length Through Hub
1.94 inches
Thickness
1.31 inches
Bolt Circle Diameter
9-1/4 inches
Bolt Hole Size
7/8 inches
Number of Bolt Holes
8
Pressure Class
300 lb
Pressure Rating
740 psig
Temperature Rating
-20 to 100 degrees F
Connection Type
Thread
Domestic/Import
Domestic
