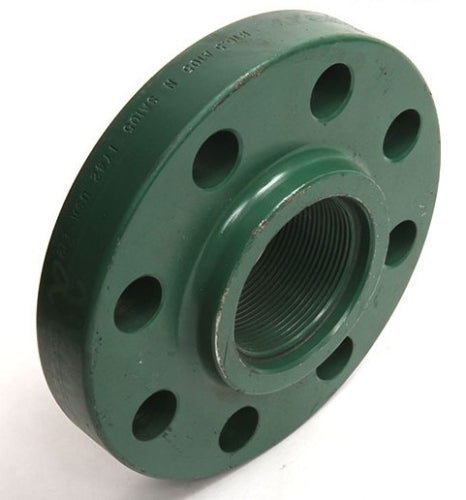

Weldbend 340-040-000 Raised Face Flange 300 lb 4 in

Product Description

The Weldbend Raised Face Flange, MPN 340-040-000, is constructed from carbon steel and is designed for reliable performance in piping systems. The flange features a nominal size of four inches and has a pressure rating of seven hundred forty psig. It is suitable for applications with a pressure class of three hundred pounds.

• Compatible with threaded connections.
• Constructed from durable carbon steel.
• Operates effectively within a temperature range of negative twenty to one hundred degrees Fahrenheit.

Product Highlights

This flange is ideal for various industrial applications where strength and reliability are essential.

Product Information

Standard Information

• Brand: Weldbend
• Material: Carbon Steel

Technical Specifications

• Nominal Size: 4 in
• Inside Diameter: 4.63 in
• Outside Diameter: 10 in
• Hub Diameter: 5-3/4 in
• Thickness: 1.19 in
• Length Through Hub: 1.82 in
• Bolt Circle Diameter: 7.88 in
• Bolt Hole Size: 7/8 in
• Number of Bolt Holes: 8
• Pressure Class: 300 lb
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 deg F
• Connection Type: Thread
• Domestic/Import: Domestic
