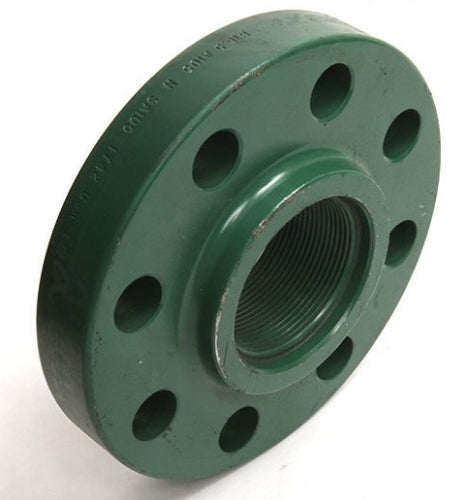

Weldbend 340-030-000 Raised Face Flange, 3 in Nominal, Forged Carbon Steel, Thread Connection, 300 lb

Product Description

The Weldbend 340-030-000 is a raised face flange made of forged carbon steel. This flange features a nominal size of three inches with a thread connection design. It is suitable for domestic applications and is rated for a pressure class of 300 lb.

• Material: Forged Carbon Steel
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit

Product Highlights

This flange is designed with convenience and safety in mind, making it ideal for various piping systems.

Product Information

Standard Information

• Manufacturer: Weldbend
• Part Number: 340-030-000

Technical Specifications

• Bolt Circle Diameter: 6.62 in
• Bolt Hole Size: 7/8 in
• Connection Type: Thread
• Domestic/Import: Domestic
• Hub Diameter: 4.62 in
• Inside Diameter: 3.63 in
• Length Through Hub: 1.63 in
• Number of Bolt Holes: 8
• Outside Diameter: 8-1/4 in
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Thickness: 1.06 in
• Type: Raised Face
