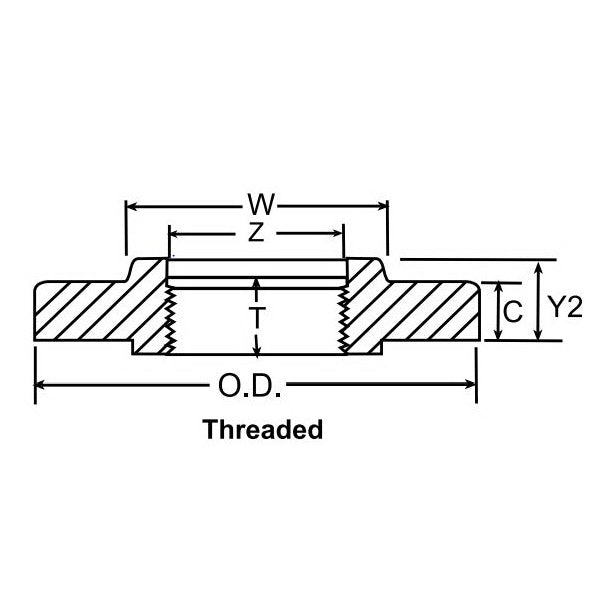

Weldbend 340-011-000 Raised Face Flange 1-1/4 in Nominal 300 lb

Product Description

The Weldbend 340-011-000 is a raised face flange made from carbon steel. This flange has a nominal size of one and one-fourth inches and features a thread connection. It is suitable for systems with a pressure rating of up to seven hundred forty psig and operates within a temperature range of negative twenty to one hundred degrees Fahrenheit.

• Nominal size: 1-1/4 inches
• Pressure rating: 740 psig
• Material: Carbon steel

Product Highlights

This flange is designed for easy installation and durability in demanding environments. It is essential for connecting pipes securely.

Product Information

Standard Information

• Brand: Weldbend
• Part Number: 340-011-000

Technical Specifications

• Nominal Size: 1-1/4 inches
• Inside Diameter: 1-3/4 inches
• Outside Diameter: 5-1/4 inches
• Thickness: 0.69 inches
• Bolt Circle Diameter: 3.88 inches
• Bolt Hole Size: 3 inches
• Number of Bolt Holes: 4
• Connection Type: Thread
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Domestic/Import: Domestic
• Material: Carbon Steel
