Weldbend 340-010-000 Raised Face Flange 1 in Nominal 300 lb

Product Description

The Weldbend 340-010-000 is a raised face flange made from carbon steel. This flange has a nominal size of one inch and features a thread connection for secure fittings. With a pressure rating of 740 psig and a 300 lb pressure class, it is suitable for various high-pressure applications.

• Nominal size of one inch
• Thread connection type
• Domestic manufacturing

Product Highlights

This product offers a robust design ideal for industrial use and reliable performance under pressure.

Product Information

Standard Information

• Manufacturer: Weldbend
• MPN: 340-010-000

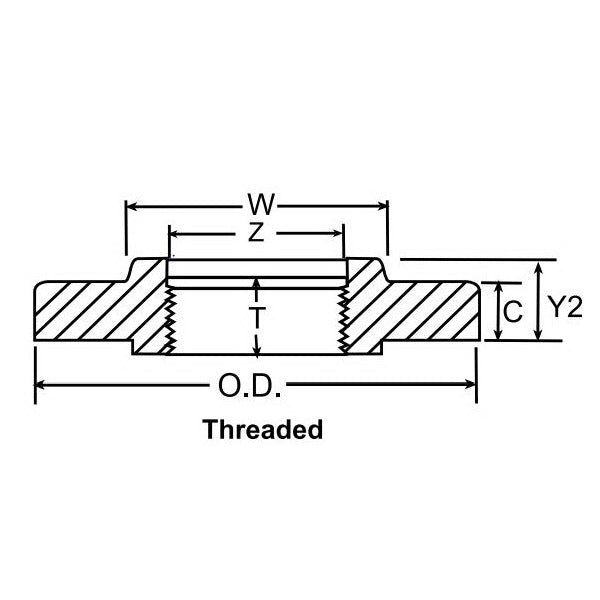

Technical Specifications

• Bolt Circle Diameter: 3-1/2 inches
• Bolt Hole Size: 3/4 inches
• Connection Type: Thread
• Domestic/Import: Domestic
• Hub Diameter: 2.12 inches
• Inside Diameter: 1.41 inches
• Length Through Hub: 1 inch
• Material: Carbon Steel
• Nominal Size: 1 inch
• Number of Bolt Holes: 4
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 degrees F
• Thickness: 0.62 inches
• Type: Raised Face
