Weldbend 340-003-000 Raised Face Flange, 3/4 in Nominal, Carbon Steel, Thread Connection, 300 lb

Product Description

The Weldbend Flange, MPN 340-003-000, features a raised face design and a nominal size of three-fourths inches. This flange is made of carbon steel and utilizes a thread connection rated for 300 lb pressure. This product is ideal for use in various piping systems that require a robust and reliable connection.

• Pressure class: 300 lb
• Temperature rating: -20 to 100 degrees Fahrenheit
• Manufactured domestically with high-quality standards

Product Highlights

This flange provides a secure connection with four bolt holes and is suitable for environments with high pressure and specific temperature ratings.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 340-003-000

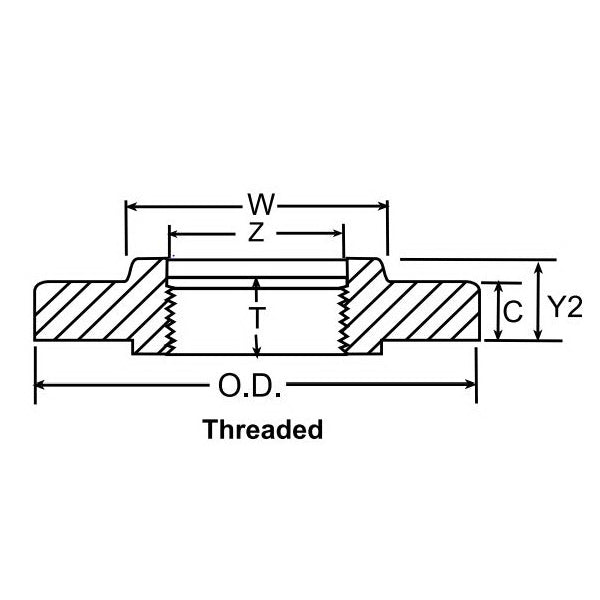

Technical Specifications

• Inside Diameter: 1.14 in
• OD: 4.62 in
• Hub Diameter: 1.88 in
• Bolt Circle Diameter: 3-1/4 in
• Connection Type: Thread
• Bolt Hole Size: 3/4 in
• Number of Bolt Holes: 4
• Thickness: 0.56 in
• Pressure Rating: 740 psig
• Material: Carbon Steel
• Domestic/Import: Domestic
• Length Through Hub: 0.94 in
• Standards/Approvals: ASME SA105/B16.5|ASTM A105
