Weldbend 330-011-000 Raised Face Blind Flange 300 lb 1-1/4 in

Product Description

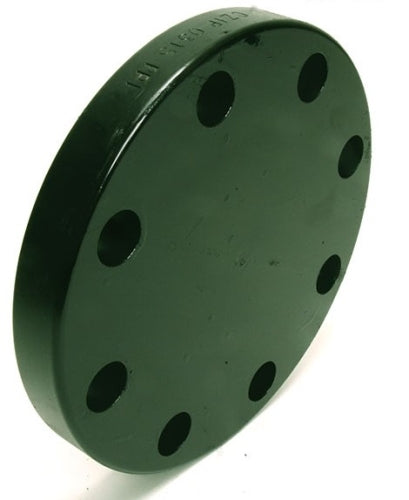

The Weldbend 330-011-000 is a raised face blind flange made from carbon steel. This product has a nominal size of one and one-fourth inches. It features a thickness of zero point sixty-nine inches and is designed for use in various piping systems. This blind flange can handle a pressure rating of seven hundred forty pounds per square inch gauge and a temperature range from negative twenty to one hundred degrees Fahrenheit.

• Material: Carbon Steel
• Pressure Class: 300 lb
• Number of Bolt Holes: 4

Product Highlights

This blind flange is suitable for applications in plumbing and HVAC systems where a secure closure is necessary.

Product Information

Standard Information

• Brand: Weldbend
• Manufacturer: Weldbend

Technical Specifications

• Nominal Size: 1-1/4 in
• Thickness: 0.69 in
• Bolt Circle Diameter: 3.88 in
• Bolt Hole Size: 3/4 in
• Outside Diameter: 5-1/4 in
• Pressure Class: 300 lb
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 deg F
• Domestic/Import: Domestic
• Number of Bolt Holes: 4
