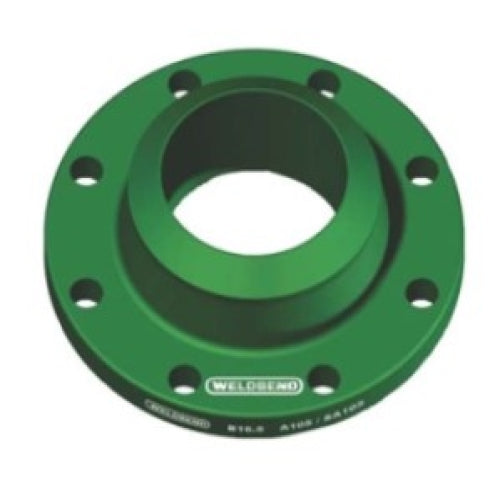

Weldbend 322-060-000 Raised Face Weld Neck Flange 300 lb 6 in

Brand: WELDBEND
SKU: 322-060-000
Availability: Out Of Stock
$149.82
$149.82
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Weldbend Raised Face Weld Neck Flange with MPN 322-060-000 is a standard component in piping systems. This flange is crafted from forged carbon steel and has a nominal size of six inches. It features a raised face for effective sealing in high-pressure applications. The flange is designed to handle pressure ratings up to seven hundred forty psig and temperature ranges from negative twenty to one hundred degrees Fahrenheit.

  • Nominal Size: 6 inches
  • Pressure Rating: 740 psig
  • Material: Forged Carbon Steel

Product Highlights

The flange is suitable for various industrial applications and is used to connect pipes or fittings in a durable and reliable manner.

Product Information

Standard Information

  • Manufacturer: Weldbend
  • Part Number: 322-060-000
Technical Specifications
Bolt Circle Diameter
10.62 inches
Bolt Hole Size
7/8 inch
Bore Size
XS
Dimensions
6.63 inches Diameter Weld
Domestic/Import
Domestic
Hub Diameter
8.12 inches
Inside Diameter
6.07 inches
Length Through Hub
3.82 inches
Number of Bolt Holes
12
Pressure Class
300 lb
Temperature Rating
-20 to 100 degrees Fahrenheit
Type
Raised Face
