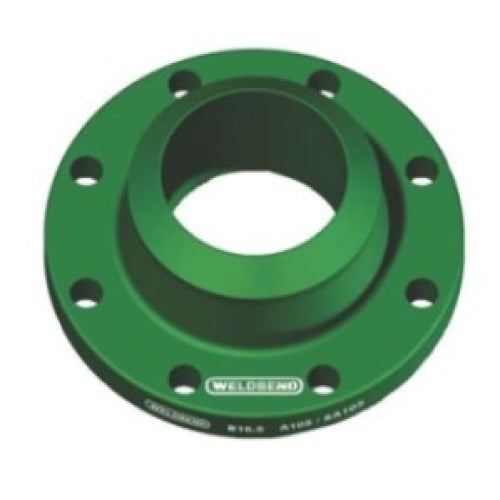

Weldbend 322-012-000 Weld Neck Flange 300 lb 1-1/2 in

Product Description

The Weldbend® 322-012-000 is a raised face weld neck flange designed for efficiency in industrial applications. It features a nominal size of one and one-half inches. This flange is made from forged carbon steel and rated for 300 lb pressure class, making it suitable for high-pressure environments.

• Standard bolt circle diameter of four and one-half inches.
• Bore size classified as XS for enhanced flow.
• Temperature usage range from negative twenty to one hundred degrees Fahrenheit.

Product Highlights

This weld neck flange is ideal for pipelines requiring robust connections. It is manufactured domestically to ensure quality compliance. The flange provides four bolt holes for secure attachment, with each hole sized seven-eighths of an inch.

Product Information

Standard Information

• Brand: Weldbend
• Type: Raised Face

Technical Specifications

• Nominal Size: 1-1/2 in
• Inside Diameter: 1.61 in
• Outside Diameter: 6.12 in
• Thickness: 3/4 in
• Length Through Hub: 2.63 in
• Hub Diameter: 2-3/4 in
• Number of Bolt Holes: 4
• Pressure Rating: 740 psig
• Pressure Class: 300 lb
• Temperature Rating: -20 to 100 deg F
• Bolt Circle Diameter: 4-1/2 in
• Bolt Hole Size: 7/8 in
• Bore Size: XS
• Material: Forged Carbon Steel
• Domestic/Import: Domestic
