Weldbend 321-060-000 Weld Neck Flange 300 lb (6 in) Replacement MPN

Product Description

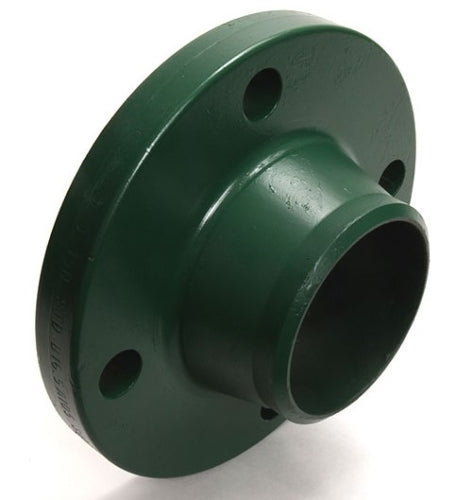

The Weldbend 321-060-000 is a weld neck flange made from forged carbon steel with a flat face design. It features a nominal size of six inches and is compatible with standard SCH 40 bore sizes. This flange has several specifications such as a bolt circle diameter of ten point six two inches and an outside diameter of twelve point five inches.

• Material: Forged Carbon Steel
• Pressure Class: 300 lb
• Compatible with SCH 40/STD Bore

Product Highlights

This weld neck flange is suitable for a range of piping applications due to its robust design and material. It is often used in construction and industrial settings where durability is critical.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 321-060-000

Technical Specifications

• Nominal Size: 6 in
• Inside Diameter: 6.07 in
• Thickness: 1.38 in
• Outside Diameter: 12-1/2 in
• Bolt Circle Diameter: 10.62 in
• Hub Diameter: 8.12 in
• Length Through Hub: 3.82 in
• Number of Bolt Holes: 12
• Bolt Hole Size: 7/8 in
• Pressure Rating: 740 psig
• Pressure Class: 300 lb
• Temperature Rating: -20 to 100 deg F
• Bore Size: SCH 40/STD
• Domestic/Import: Domestic
• Dimensions: 6.63 in Dia Weld
