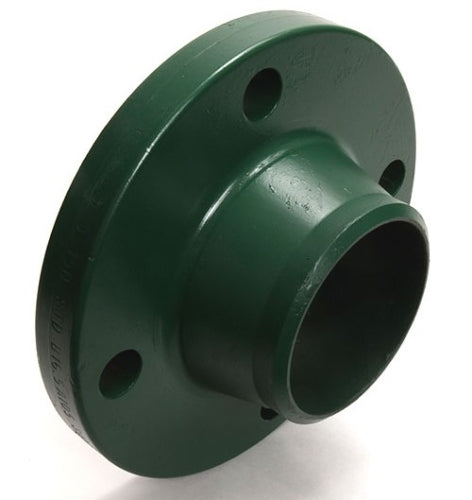

Weldbend 321-010-000 Weld Neck Flange 300 lb 1 in

Product Description

The Weldbend 321-010-000 is a weld neck flange made from forged carbon steel. It features a flat face design and is compatible with a nominal size of one inch. This flange is ideal for joining pipe sections in various applications.

• Material: Forged Carbon Steel
• Pressure Rating: 740 psig
• Temperature Range: -20 to 100 degrees Fahrenheit

Product Highlights

This flange provides a strong connection suitable for high-pressure applications.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 321-010-000

Technical Specifications

• Nominal Size: 1 in
• Inside Diameter: 1.05 in
• Outside Diameter: 4.88 in
• Thickness: 0.62 in
• Bolt Circle Diameter: 3-1/2 in
• Bolt Hole Size: 3/4 in
• Number of Bolt Holes: 4
• Hub Diameter: 2.12 in
• Length Through Hub: 2.38 in
• Pressure Class: 300 lb
• Bore Size: SCH 40/STD
• Domestic/Import: Domestic
• Temperature Rating: -20 to 100 degrees Fahrenheit
