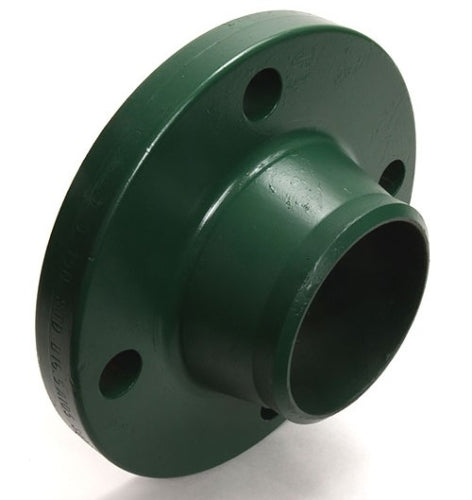

Weldbend 320-140-000 Weld Neck Flange 14 in 300 lb SCH 40/STD

Product Description

The Weldbend 320-140-000 is a raised face weld neck flange made from forged carbon steel. It has a nominal size of fourteen inches. This flange is ideal for a range of piping applications and is designed to provide a reliable connection.

• Nominal size of fourteen inches
• Rated for pressure up to seven hundred forty psig
• Forged carbon steel construction for durability

Product Highlights

This flange is suitable for high-pressure environments and is used in various industrial piping systems.

Product Information

Standard Information

• Brand: Weldbend
• Type: Weld Neck Flange

Technical Specifications

• Nominal Size: 14 in
• Inside Diameter: 13-1/4 in
• Outside Diameter: 23 in
• Bore Size: SCH 40/STD
• Thickness: 2.06 in
• Length Through Hub: 5.56 in
• Hub Diameter: 16-3/4 in
• Bolt Circle Diameter: 20-1/4 in
• Number of Bolt Holes: 20
• Bolt Hole Size: 1-1/4 in
• Pressure Class: 300 lb
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 deg F
• Domestic/Import: Domestic
