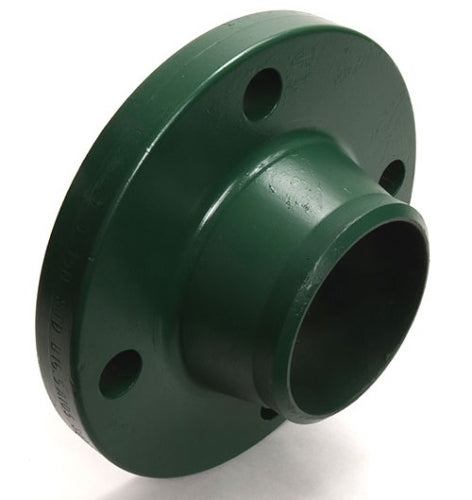

Weldbend 320-120-000 Raised Face Weld Neck Flange, 12 in, Forged Carbon Steel, 300 lb

Product Description

Weldbend® 320-120-000 is a raised face weld neck flange constructed from forged carbon steel. It has a nominal size of twelve inches and an inside diameter of twelve inches. The flange features a thickness of 1.94 inches and a bolt circle diameter of seventeen and three-quarters inches. It accommodates sixteen bolt holes sized at one and one-quarter inches.

• Pressure rated for 740 psig
• Temperature range from -20 to 100 degrees F
• Domestic product

Product Highlights

This weld neck flange is ideal for various pipelines where a strong weld connection is required.

Product Information

Standard Information

• Manufacturer: Weldbend
• MPN: 320-120-000

Technical Specifications

• Nominal Size: 12 in
• Inside Diameter: 12 in
• Outside Diameter: 20-1/2 in
• Hub Diameter: 14-3/4 in
• Length Through Hub: 5.06 in
• Thickness: 1.94 in
• Number of Bolt Holes: 16
• Pressure Rating: 740 psig
• Pressure Class: 300 lb
• Bolt Circle Diameter: 17-3/4 in
• Temperature Rating: -20 to 100 degrees F
• Material: Forged Carbon Steel
• Standards/Approvals: ASME SA105/B16.5 | ASTM A105
• Domestic/Import: Domestic
