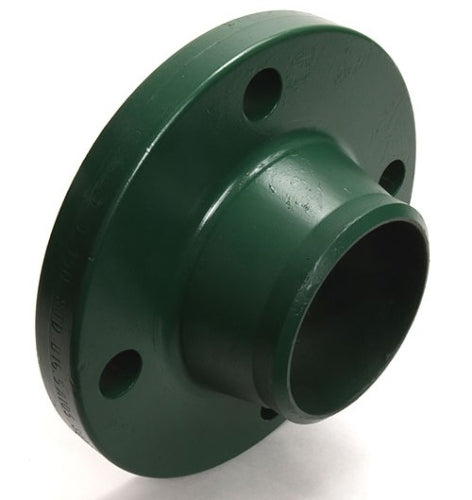

Weldbend 320-100-000 Weld Neck Flange 10 in 300 lb SCH 40/STD Bore

Product Description

The Weldbend Weld Neck Flange with MPN 320-100-000 is designed for high-pressure applications. It is made of forged carbon steel and has a raised face design suitable for various pipe connections. This flange has a nominal size of ten inches and an inside diameter of ten point zero two inches.

• Pressure rating of 740 psig
• Temperature rating between minus twenty to one hundred degrees Fahrenheit
• Compatible with standard pipe fittings

Product Highlights

This flange is ideal for connecting pipes in industries requiring reliable sealing. Its robust construction ensures durability in tough environments, making it suitable for plumbing, HVAC, and industrial applications.

Product Information

Standard Information

• Manufacturer: Weldbend
• MPN: 320-100-000

Technical Specifications

• Nominal Size: 10 in
• Inside Diameter: 10.02 in
• Outside Diameter: 17.5 in
• Hub Diameter: 12.62 in
• Length Through Hub: 4.56 in
• Thickness: 1.81 in
• Bolt Circle Diameter: 15.25 in
• Bolt Hole Size: 1.125 in
• Number of Bolt Holes: 16
• Material: Forged Carbon Steel
• Bore Size: SCH 40/STD
• Pressure Rating: 740 psig
• Pressure Class: 300 lb
• Temperature Range: -20 to 100 deg F
• Standards/Approvals: ASME SA105/B16.5, ASTM A105
