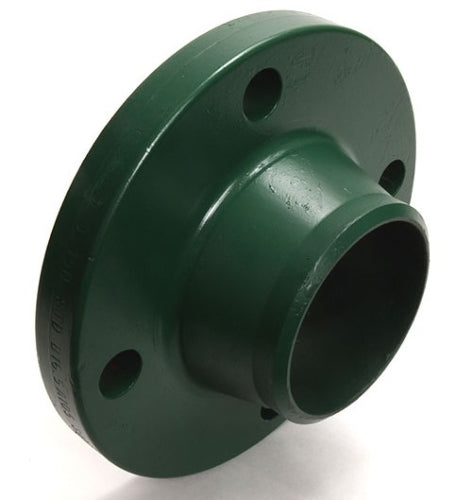

Weldbend 320-050-000 Weld Neck Flange 5 in 300 lb

Product Description

The Weldbend Weld Neck Flange, model 320-050-000, features a raised face design. This flange has a nominal size of five inches and is made from forged carbon steel. It meets the requirements for 300 lb pressure class and can handle a pressure rating of seven hundred forty psig. It is suitable for use in various piping applications.

• Nominal size: five inches
• Material: forged carbon steel
• Pressure rating: seven hundred forty psig

Product Highlights

This raised face weld neck flange is designed to provide a strong seal in piping systems. It is ideal for installations where significant stress is expected.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 320-050-000

Technical Specifications

• Nominal Size: 5 in
• Inside Diameter: 5.05 in
• Outside Diameter: 11 in
• Thickness: 1.31 in
• Hub Diameter: 7 in
• Length Through Hub: 3.82 in
• Bolt Circle Diameter: 9-1/4 in
• Number of Bolt Holes: 8
• Bore Size: SCH 40/STD
• Pressure Class: 300 lb
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 deg F
• Material: Forged Carbon Steel
• Domestic/Import: Domestic
