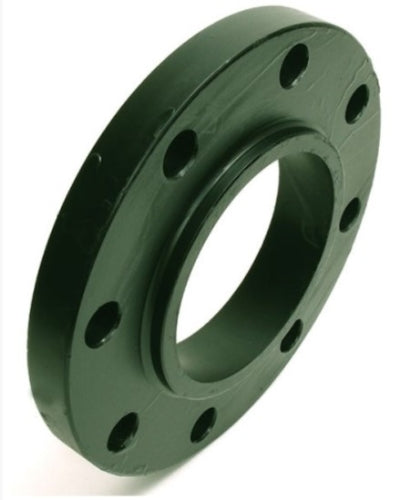

Weldbend 310-120-000 Raised Face Slip-On Flange 12 in

Product Description

The Weldbend Raised Face Slip-On Flange, MPN 310-120-000, is made from forged carbon steel and has a nominal size of twelve inches. This flange is designed to meet the specifications required for high-pressure applications. It features an inside diameter of twelve point eighty-eight inches and an outside diameter of twenty point five inches. The flange has a thickness of one point ninety-four inches and a hub diameter of fourteen point seventy-five inches.

• Pressure rating of seven hundred forty psig
• Temperature range from negative twenty to one hundred degrees Fahrenheit
• Sixteen bolt holes with a bolt hole size of one point twenty-five inches

Product Highlights

This flange is ideal for applications that require a reliable seal and strong connection in pipe fittings.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 310-120-000

Technical Specifications

• Nominal Size: 12 in
• Inside Diameter: 12.88 in
• Outside Diameter: 20.5 in
• Thickness: 1.94 in
• Hub Diameter: 14.75 in
• Length Through Hub: 2.82 in
• Bolt Circle Diameter: 17.75 in
• Number of Bolt Holes: 16
• Bolt Hole Size: 1.25 in
• Pressure Class: 300 lb
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 deg F
• Material: Forged Carbon Steel
• Domestic/Import: Domestic
