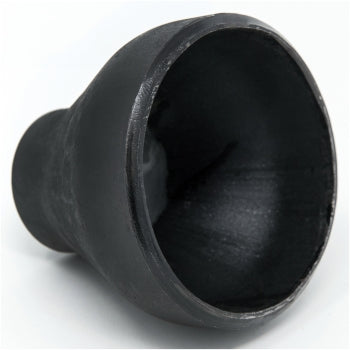

Weldbend 234-091-020-010 2 X 1 XHVY BW CONC REDUCER

Product Description

The Weldbend 234-091-020-010 is a concentric reducer fitting designed for various piping applications. This reducer has a nominal size of two by one inches and features a butt welded end style. It is suitable for high-pressure systems with a rating of three thousand four hundred twenty-two pounds. The reducer is suitable for use in temperatures ranging from negative twenty to six hundred fifty degrees Fahrenheit.

• Material: Carbon Steel
• Dimensions: 1.944 inches ID x 2.38 inches OD (large), 0.962 inches ID x 1.32 inches OD (small)
• Standards: ASTM A234 Grade WPB, ASME B16.9

Product Highlights

This product is ideal for applications that require a reduction in pipe diameter while maintaining flow.

Product Information

Standard Information

• Nominal Size: 2 x 1 inches
• Pressure Rating: 3422 lb

Technical Specifications

• Material: Carbon Steel
• End Style: Butt Welded
• Length: 3 inches
• Temperature Rating: -20 to 650 deg F
• Fitting/Connector Type: Reducer
• Schedule Rating: SCH 80/XH
• Manufacturer: Weldbend Corp
• Dimensions: 1.944 inches ID x 2.38 inches OD x 0.218 inches THK (large), 0.962 inches ID x 1.32 inches OD x 0.179 inches THK (small)
