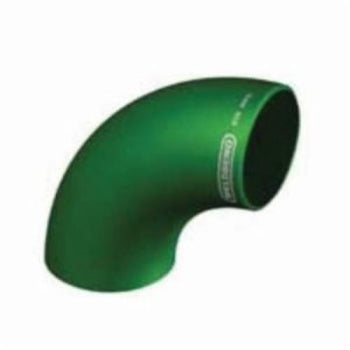

Weldbend 234-010-022-000 2-1/2 STD BUTT WELD 90 ELL

Product Description

The Weldbend Pipe Elbow, MPN 234-010-022-000, is a long radius, 90 degree elbow fitting made from carbon steel. It is designed for butt welding and is suitable for various piping applications. This fitting is ideal for connecting two sections of pipe at a right angle, efficiently redirecting the flow within pipelines.

• Designed for use in piping systems where a 90 degree turn is needed.
• Compatible with Schedule 40/STD piping.
• Operates effectively under high pressure and temperature conditions.

Product Highlights

The Weldbend 90 degree elbow is built for durability and reliability in demanding conditions. It has a pressure rating of 2583 lb and can operate within temperatures ranging from -20 to 650 degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Weldbend Corp
• Type: Long Radius Elbow

Technical Specifications

• Nominal Size: 2-1/2 in
• End Style: Butt Welded
• Fitting/Connector Type: 90 degree Elbow
• Material: Carbon Steel
• Dimensions: 2.469 in ID x 2.88 in OD
• Pressure Rating: 2583 lb
• Schedule Rating: SCH 40/STD
• Temperature Rating: -20 to 650 deg F
• Thickness: 0.203 in
