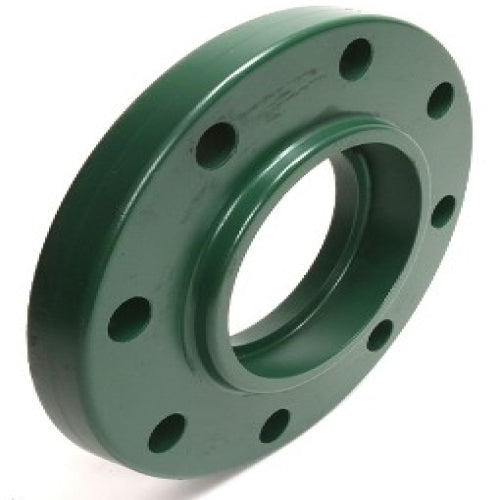

Weldbend 162-020-000 Raised Face Socket Weld Flange, 2 in, Forged Carbon Steel, 150 lb, SCH 80/XH Bore

Product Description

The Weldbend Socket Weld Flange, with MPN 162-020-000, is designed for joining pipes securely in various plumbing and HVAC applications. This flange has a nominal size of two inches and is made of forged carbon steel. It features a raised face design that provides reliable sealing capabilities under pressure.

• Nominal size of two inches for standard piping applications.
• Pressure rating of two hundred eighty-five psig, suitable for diverse conditions.
• Manufactured for durability with forged carbon steel.

Product Highlights

This flange ensures a strong connection and withstands a temperature range from twenty below to one hundred degrees Fahrenheit. Ideal for both domestic use and industrial applications.

Product Information

Standard Information

• Brand: Weldbend
• Manufacturer Part Number: 162-020-000

Technical Specifications

• Nominal Size: 2 in
• Inside Diameter: 2.44 in
• Outside Diameter: 6 in
• Thickness: 0.69 in
• Bore Size: SCH 80/XH
• Hub Diameter: 3.06 in
• Length Through Hub: 0.94 in
• Bolt Circle Diameter: 4-3/4 in
• Bolt Hole Size: 3/4 in
• Number of Bolt Holes: 4
• Pressure Rating: 285 psig
• Pressure Class: 150 lb
• Temperature Rating: -20 to 100 deg F
• Domestic/Import: Domestic
• Material: Forged Carbon Steel
• Standards/Approvals: ASME SA105/B16.5 | ASTM A105
