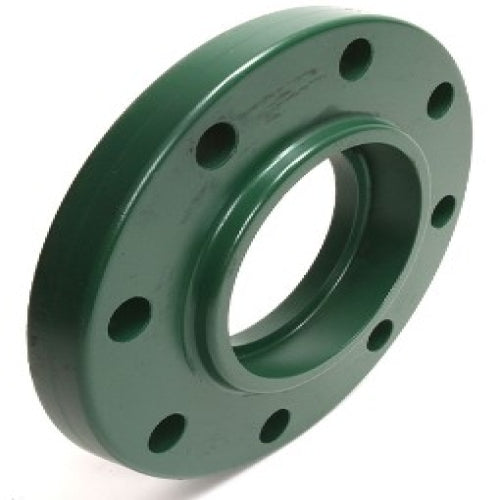

Weldbend 162-003-000 Raised Face Socket Weld Flange, 3/4 in, Forged Carbon Steel, 150 lb, SCH 80/XH Bore

Product Description

The Weldbend 162-003-000 Raised Face Socket Weld Flange is a durable fitting made from forged carbon steel. It has a nominal size of three-quarters of an inch and a thickness of zero point forty-four inches. This flange is designed for socket welding applications and has a raised face for better sealing.

• Nominal size: 3/4 inches
• Pressure rating: 285 psig
• Temperature range: -20 to 100 degrees Fahrenheit

Product Highlights

This flange meets the ASME SA105 and ASTM A105 standards. It features four bolt holes for secure installation. Its design accommodates a SCH 80/XH bore for reliable performance.

Product Information

Standard Information

• Brand: Weldbend
• Type: Raised Face

Technical Specifications

• Bolt Circle Diameter: 2-3/4 inches
• Bolt Hole Size: 5/8 inches
• Bore Size: SCH 80/XH
• Domestic/Import: Domestic
• Hub Diameter: 1-1/2 inches
• Inside Diameter: 1.09 inches
• Length Through Hub: 0.56 inches
• Manufacturer Part Number: 162-003-000
• Material: Forged Carbon Steel
• Nominal Size: 3/4 inches
• Number of Bolt Holes: 4
• Outside Diameter: 3.88 inches
• Pressure Class: 150 lb
• Pressure Rating: 285 psig
• Temperature Rating: -20 to 100 degrees Fahrenheit
